FEATURES

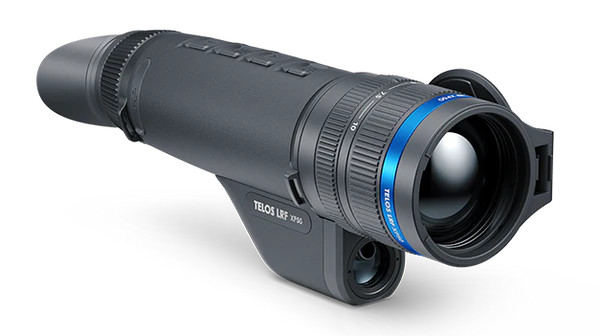

Enjoy incredible thermal sensitivity and precise distance measurements with the Pulsar Telos LRF XP50.
Intuitive User Experience
For a more tactile and intuitive use of Pulsar flagship handhelds, activate the haptic feedback function in the short menu of the Telos. The unit will respond with short vibrations when pressing the control buttons.
Objective Ring Zoom Control
You can ideally adjust the image in Telos with one hand − the focusing and smooth zoom rings are located on the lens in the classic layout, one by one, as in professional camera objective lenses. The consistent arrangement of the rings enables getting a clear image with the required magnification quickly and with minimal effort.
Precise Laser Ranging
Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1200 meters allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 metre for quick and error-free assessment of the situation.
Ergonomic, Nonslip Rubber-coated Housing
The rubber-coated housing helps to securely hold the thermal imaging device in the hand in both dry weather and rain. The housing has exceptional wear resistance and perfectly withstands operation in a wide range of temperatures, including dusty and moist conditions, and it protects the device from falls. In addition, the housing is easily cleaned and keeps its original appearance for a long time.
Replaceable Battery Pack with Direct Plug & Wireless Fast Charge Options
The brand-new LPS 7i quick-change Li-ion battery guarantees more than 8 hours of operating time. LPS 7i doesn’t require special chargers − just connect it to any network adapter via the USB Type-C port and charge it using the Power Delivery fast charging protocol in a short time. Moreover, the LPS 7i battery supports wireless charging.
Ergonomic and Functional Carrying Case
A hunter must be fast-moving. A sign of good quality equipment is being at hand when needed, and invisible the rest of the time. Stylish on the outside, the Telos case is user-friendly and comfortable to carry. The thermal imaging device is quickly and easily removed from the case and placed in position. The system of optimal belt positioning distributes the device weight on the hunter’s body, relieving the load from the shoulders, back and neck. The cover fits snugly to the body, without preventing the hunter from freely bending, turning, crouching, moving across country and using weapons. Additionally, the Telos case is equipped with straps for attaching it to a waist belt, as well as to equipment with a modular Molle fixation system, including backpacks and webbed gears.
Adaptable for Left- and Right-handed Use
The vertical symmetrical layout of the controls makes Telos the best thermal imaging monoculars for ambidextruous use − the buttons are located in a row on the top panel, and the lens rings are used for focusing and changing magnification, ensuring maximum comfort when used with both left and right hand.
Other Features
- Fast Aperture Lens
- Built-in Video Recorder with up to 128 GB Internal Memory
- Stream Vision 2. Wi-Fi Integration with iOS and Android Devices
- High-contrast AMOLED Display
- Dual Wi-Fi Waveband Support 2.4 / 5 GHz
- A Selection of 9 Colour Palettes
- Operation in Extreme Temperatures -25 to +40°C
- IPX7 Submersion Waterproof Rated
- User Mode
SPECIFICATIONS
Sensor
- Objective lens - F50 / 1.0
- Magnification - x2.5 – 10 (x4 digital zoom)
- Field of view (HxV), degrees / m@100m - 12.4x9.3 / 21.8x16.3
- Detection range - 1800m
- Sensor type - Uncooled
- Resolution - 640x480, 17 µm (NETD <18 mK)
- Frame rate - 50Hz
Optics
- Objective lens - F50 / 1.0
- Magnification, x2.5 – 10 (x4 digital zoom)
- Field of view (HxV), degrees / m @ 100 m - 12.4x9.3 / 21.8x16.3
- Eye relief - 14mm
- Display Type - AMOLED HD
- Resolution - 1024x768
- Detection range - 1800m
Laser Rangefinder
- Safety class for laser equipment according to IEC 60825-1:2014
- Wavelength - 905nm
- Max. measuring range - 1000m
- Measurement accuracy - ± 1m
Video Recorder
- Video / photo resolution - 1024x768
- Video / photo format - .mp4 / .jpg
- Built-in memory, 64GB
Wi-Fi
- Wireless Protocol - Wi-Fi
- Wireless Standard - IEEE 802.11 b/g/n/ac (WPA)
- Frequency, 2.4 / 5GHz
Environmental Characteristics
- Degree of protection - IP code (IEC60529)
- IPĐĄ7 (waterproof)
- Operating temperature range - -25 - +40°Đˇ
Connections and Compatibilities
- Mount, type - 1/4"
- Supported Application - Stream Vision
Power Supply
- Output voltage - 3.0 - 4.2V
- Battery type - LPS 7i Li-Ion Battery Pack
- Capacity - 6400mAh
- Operating time on battery pack (at t=22°C) - 8.5 hours
- External power supply - 5V, 9V (USB Type-C Power Delivery
Weight & Size
- Body material - rubber armoured reinforced plastic
- Dimensions (mm) - 238x72x90
- Weight (kgs) - 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
