FEATURES

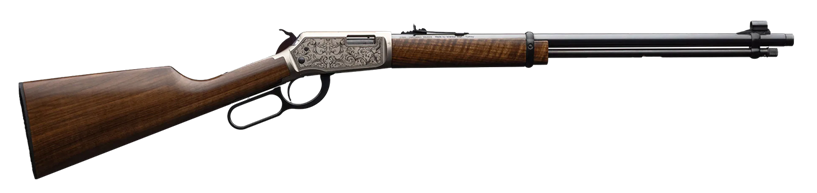

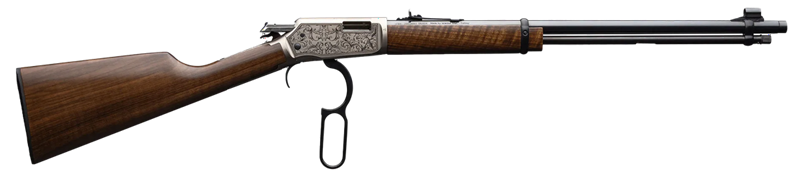

Crafted with classic lever‑action heritage and refined with premium finishes, The Winchester Ranger High Grade is a limited‑series .22LR that captures the romance of the American West with modern reliability and functionality.
Its nickel‑plated receiver, American Grade 2/3 timber, and brass‑bead sights elevate the Ranger into a collector‑worthy showpiece.
THE WINCHESTER HIGH GRADE LEVER-ACTION RIFLE
This beautiful, slick cycling 22 LR rifle is loaded with features and designed to be equally adept in the field hunting rabbits and squirrels as it is making short work of tin cans and punching paper at the shooting range.
What makes this rifle different is the aluminium receiver with a nickel finish. The receiver is lightweight and contributes to the balanced feel of the rifle between the hands. It's also strong and the precision construction helps ensure longevity. The top of the receiver is grooved to accept optics mounts.
Inside, the action has been carefully developed with light operating forces and a sure feel that make it easy for new shooters to confidently operate the action and pure bliss for seasoned hands to rapidly cycle and fire until the 15-round tubular magazine runs dry.
The high-quality, chromoly steel barrel is produced right alongside the barrels found on our accurate Wildcat and Xpert rimfire rifles. It is precision bored and button rifled to provide year after year of accurate performance.
The Ranger High Grade Nickel can be separated in two by removing one action screw. This allows you to easily clean the action and run a patch through the barrel from the chamber end to prevent damage to the rifling. The rifling is also protected by a target-style muzzle crown.
Bringing a refined elegance reminiscent of the classic lever-action designs of the past, the Ranger showcases a straight-grip Grade 2/3 Walnut stock, complemented by a long-lasting satin finish. The 13" length of pull is comfortable for a wide range of users. Up front, the carbine-style handguard is secured with the traditional steel barrel band.
RANGER HIGH GRADE FEATURES
- Polished Nickel Finished Receiver Finish
- Grooved Receiver Top for Optic Mounts
- Precision Button-rifled Barrel with a Gloss Blued Finish and Target-style Crown
- Grade 2/3 Walnut Stock with Straight Grip Styling and Satin Finish
RANGER FEATURES
- Classic Carbine-style Forearm with Barrel Band
- Precision-machined Aluminium Receiver; Grooved for Optic Mounts
- Precision Button-rifled Barrel with Target-style Crown
- Lever-action Engineered with Light Operating Forces for Easy Cycling
- Three Position Hammer
- Hooded Front Sight and Adjustable Rear Sight
- Single Screw Takedown for Cleaning or Compact Storage
- Tubular Magazine
SPECIFICATIONS
- Item Number: 524210102
- Caliber: .22 LR
- Barrel Length: 20.5" / 52cm
- Overall Length: 37 3/4" / 95.85cm
- Length of Pull: 13"
- Drop at Comb: 1 1/4"
- Drop at Heel: 2"
- Weight: 5 lbs 4 oz
- Magazine Capacity: 15
- Twist Rate: 16"
- Barrel Finish: Gloss Blued
- Stock Finish: Satin Oil
- Wood Grade: Grade II/III
- Receiver Finish: Nickel Plated Engraved Receiver
- Barrel Material: Steel
- Barrel Contour: Sporter
- Recoil Pad: Plastic Butt Plate
- Checkering: None
- Sling Swivel Studs: None
- Receiver Material: Aluminium Alloy
- Trigger Finish: Matte Black
- Bolt Slide Finish: Nickel
- Magazine Type: Tubular
- Trigger Material: Steel
- Trigger Guard Material: Steel
- Trigger Guard Engraving: None
- Drilled and Tapped for Scope: Grooved
