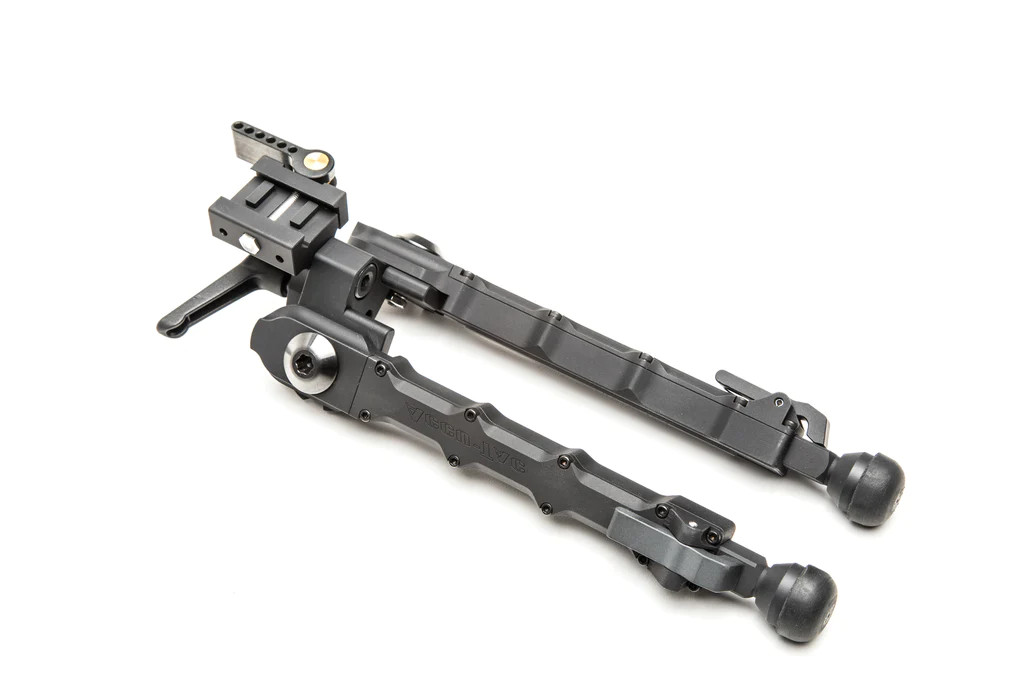

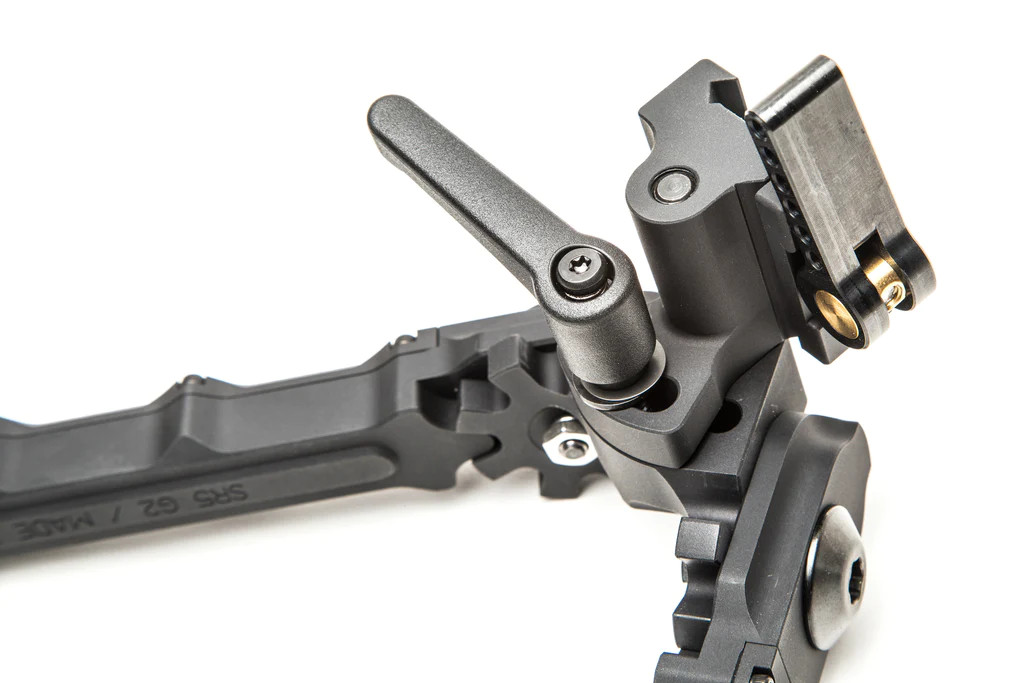

You will feel the stability and security of your rifle as never felt before. The SR-5 G2 has the ability to cant which can be locked with its new throw lever.
Our quick detach rail mount is simple, quick, and very secure; it attaches to a 1913 Picatinny rail and mounts in seconds without the need to use extra tools for tightening. Our ratcheted leg extension design allows the shooter to quickly adjust to 9 different heights without having to align each leg equally. The spring-loaded leg extension retracts quickly with a one-button retraction lever. The retracted leg height of 6 inches extends to a full open position of 10 inches with 8 other positions in-between.
To engage or adjust leg position, simply pull the spring-loaded leg downward to move each leg independently. Leg position can be deployed to 90°, 45°, locking securely into 4 positions.
Specifications:
| Materials |
6061 T6 Aluminum alloy / High strength steel hardware |
| Min. Height (Legs at 45°) |
6.25” / 158.75 mm |
| Min. Height (Legs at 90°) |
8.0” /203 mm |
| Max. Height (Legs at 90°) |
10.75” / 273 mm |
| Min. Stance (Legs at 45°) |
9.25” / 235 mm |
| Max. Stance (Legs at 90°) |
15.75” / 400 mm |
| Closed Position Width |
3.25” / 82.5 mm |
| Closed Position Length |
9.0” / 228.6 mm |
| Weight |
22 oz |
| Color |
Flat Black |
| Coating |
Type III ( MIL-SPEC ) Hard Anodize |
