The ARC II Picatinny is rated for rifles weighing up to 29 lbs. and cartridges up to, and including, .338 LPM.
The BipodeXt ARC II is identical to our U.S.-made TAC II Gen2, with one exception: we source its components from various countries so that we can offer it at the best possible value. Other than the origin of its parts, there are no differences between the ARC II and our U.S.-made TAC II Gen2. Even the warranty is the same: limited lifetime.

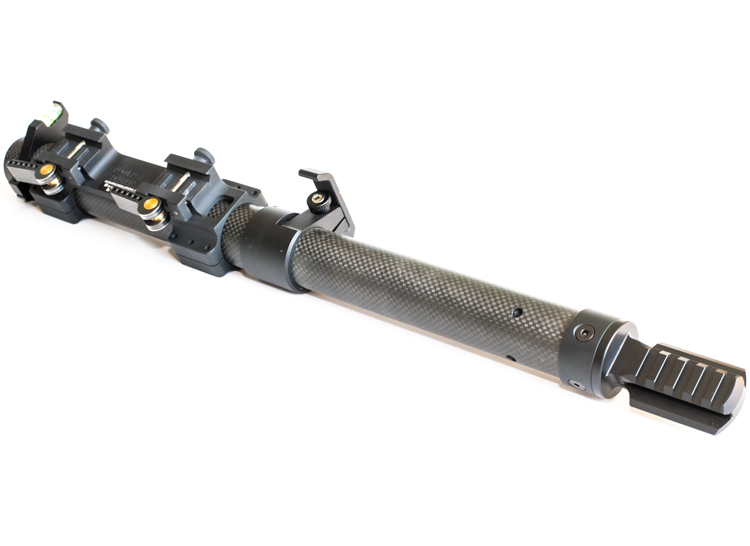

This model contains two telescoping carbon fiber tubes. It provides the shooter with a single extension in a compact system tailored for weapons with shorter barrels that are still in use as precision shooting platforms. Our progressive wall thickness telescoping tube design allows the shooter to extend the resting point (fulcrum) to the muzzle of most carbine style rifles, thus reducing the point of impact shift caused by unintentional movement at the toe of the rifle system. Recoil is mitigated and easier to manage; shooters are often heard saying “I can spot my own shots!”.
The BipodeXt ARC II is made with the same engineered tolerance requirements as its larger brother and U.S. born cousins, namely the TAC II Gen2 and TAC III Gen2. The ARC II product was designed and engineered by Accuracy Solutions LLC to provide the perfect fit for practically all field applications. The BipodeXt ARC III allows the shooter to move the resting point of their weapon approximately 44 inches away from the toe of the rifle. Fully extended it measures 21.3 inches. Contracted it measures 14 inches. The O.D. of its base tube is 40 mm (1.575”), it weighs less than 27 oz.
The ARC II Picatinny is rated for rifles weighing up to 29 lbs. and cartridges up to, and including, .338 LPM.
General Specifications
- Materials 3K Carbon Fiber and 6061 T6 Aluminum Alloy (Coating: Type III -Hard Anodize)
- Collapsed 14”
- Fully Extended 21.3”
- Color Black
- Weight 27 oz
Box Contents
- One (1) 3K Carbon Fiber Telescoping Assembly
- One (1) Proprietary Quick Detach Unimount System
- One (1) 13-Slots M-LOK 1913 Picatinny Rail
- One (1) 13-Slots KeyMod 1913 Picatinny Rail
- One (1) 16-Slots Standard (flat back) 1913 Picatinny Rail
- One (1) 13-Slots Tilted 1913 Picatinny Rail* (260 MOA)
- One (1) 5-Slots Picatinny Rail
- One (1) Sling Stud (for Harris styled bipods)
- One (1) Level Indicator
- One (1) Hardware Kit containing all necessary bolts, nuts, washers, inserts and Allen wrenches.
- Assembly and Operations Guide (printed)
