FEATURES

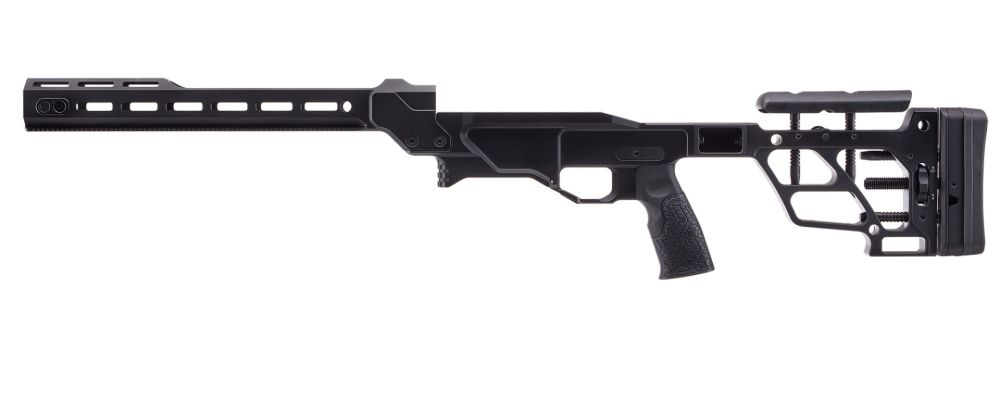

The Daniel Defense Pro Chassis System gives marksmen a competitive option for their current DELTA 5 bolt-action rifle with polymer stock. This chassis is a drop-in replacement for the DELTA 5 Stainless Steel Action and Cold Hammer Forged Barrel. Designed for long-range competition— specifically the PRS production class— integral features give users a professional chassis solution without the professional price tag. With innovative features like the adjustable thumb rest, integral ARCA Rail and user-adjustable buttstock, the PRO Chassis System will not disappoint.
This Daniel Defense Pro Chassis System only accommodates DELTA 5 Actions. Mini-chassis will not accommodate 700-pattern actions.
- ARCA Lock: RRS compatible locking system extends the length of the forend and allows for accessory attachment
- Thumb Rest: Left/right adjustment allows users to set at the desired position for optimal ergonomics
- User-Configurable Stock: Allows for toolless adjustment of the comb’s height and yaw, length of pull and butt pad vertical adjustment
- QD Points: Integrated quick-disconnect points for the attachment of slings
- M-Lok: Features M-LOK attachment technology
- AR-15 Compatible Grip: Ergonomic wrist angle and nonslip grip for comfort and control in all conditions
- Barrier Stop: Prevents interference with the magazine and provides stability with surface contact
MATERIALS & CONSTRUCTION
- Chassis is CNC-Machined from 6061-T6 aluminium
- Grip – Glass-infused polymer with soft touch overmolding
- Comb (cheek piece) – Glass-infused polymer
- Butt Pad – Rubber-like polymer
KEY FEATURES
- CHASSIS BASE: Allows for the mechanical bedding of the action with a metal-on-metal design that protects against change in weather conditions
- ATTACHMENT: M-LOK attachment at six positions along forend with one point on bottom of buttstock
- QUICK DETACH: Ten sling swivel attachment points
- INTEGRAL ARCA LOCK (RRS Spec): Continuous along the entire lower portion of rail
- SCALLOPED CUT: Allows for lower height over bore even with scopes with large objective lenses
- AR-15 GRIP ATTACHMENT: Interchangeable to accommodate the user’s preference of aftermarket grips
- ERGONOMIC THUMB REST: Left / Right adjustability to accommodate the user’s preference
- ADJUSTABLE BUTTSTOCK: Offers length of pull and butt pad height adjustments without the need for tools
- ADJUSTABLE CHEEK RISER: For preferred height, yaw and drift
- MAGAZINE: Accepts any AICS Short Action magazine
- FINISH: Black Type III Hard Coat Anodized, Coyote Tan Cerakote or Olive Drab Cerakote
SPECIFICATIONS
- Pro Chassis System Length: 34"
- Pro Chassis System Length of Pull: 13.6" to 14.9"
- Pro Chassis System Right/Left Handed: Right Handed
- Pro Chassis System Weight: 5.2 lbs.
- Folding Stock: Non-folding
- Manufacturer: Daniel Defense
