FEATURES

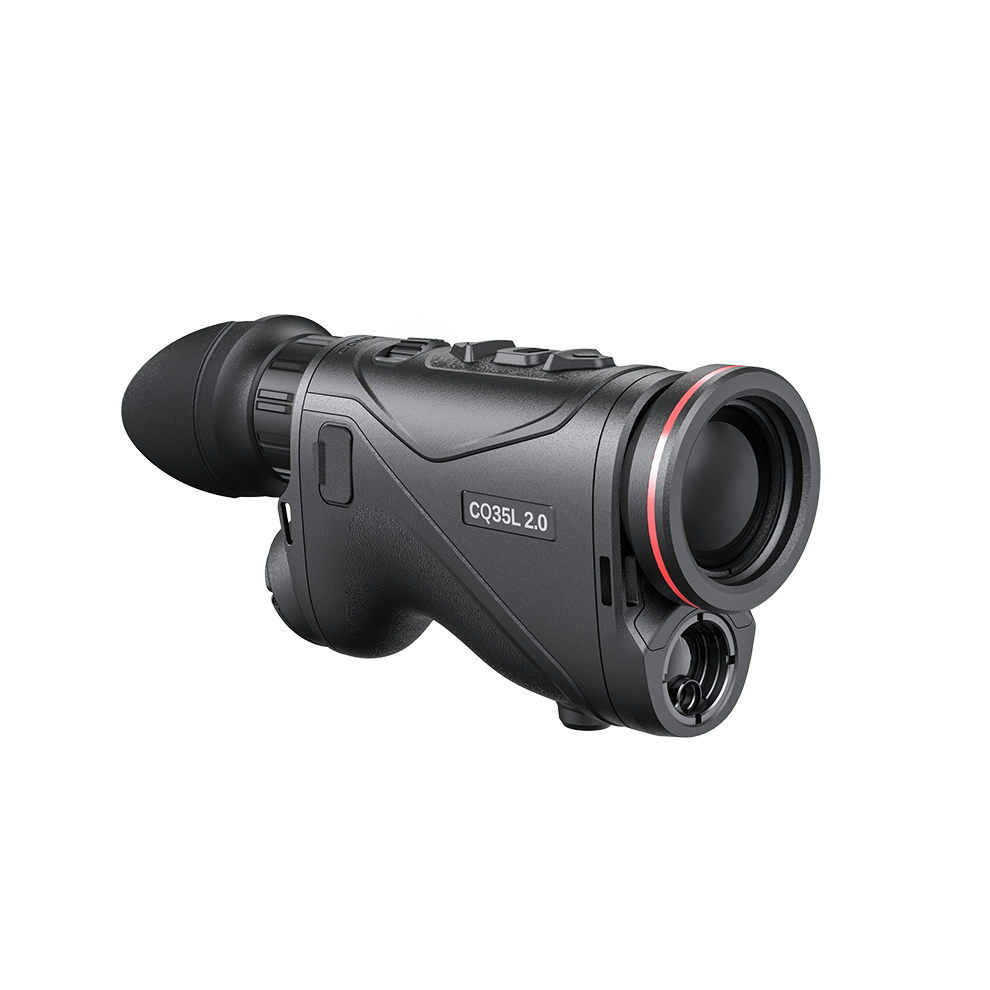

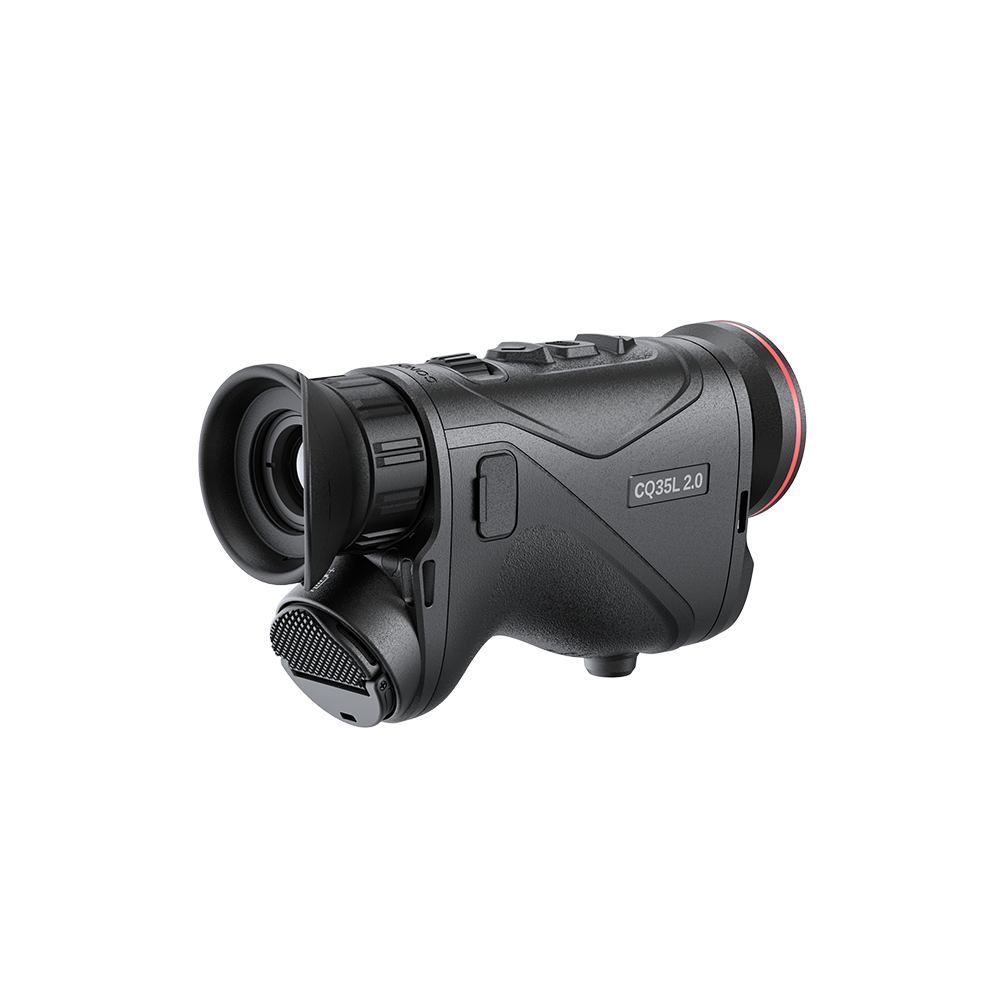

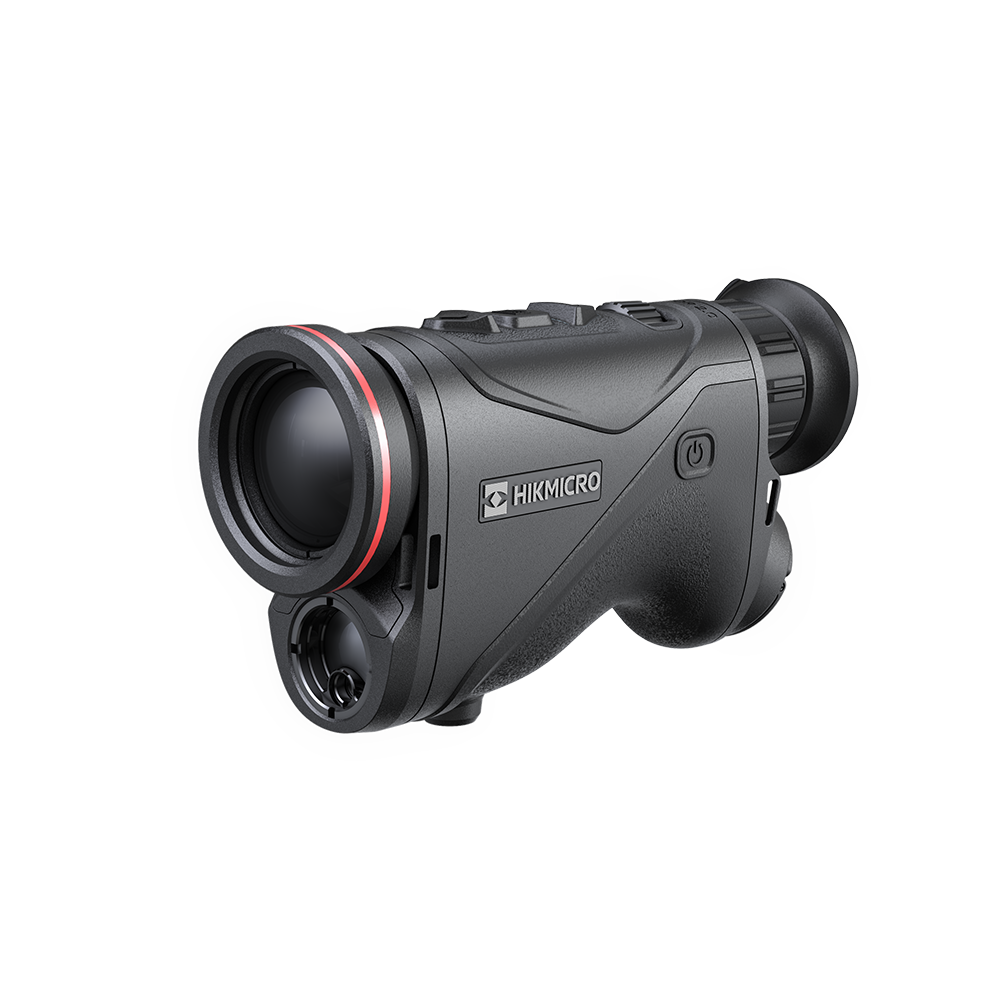

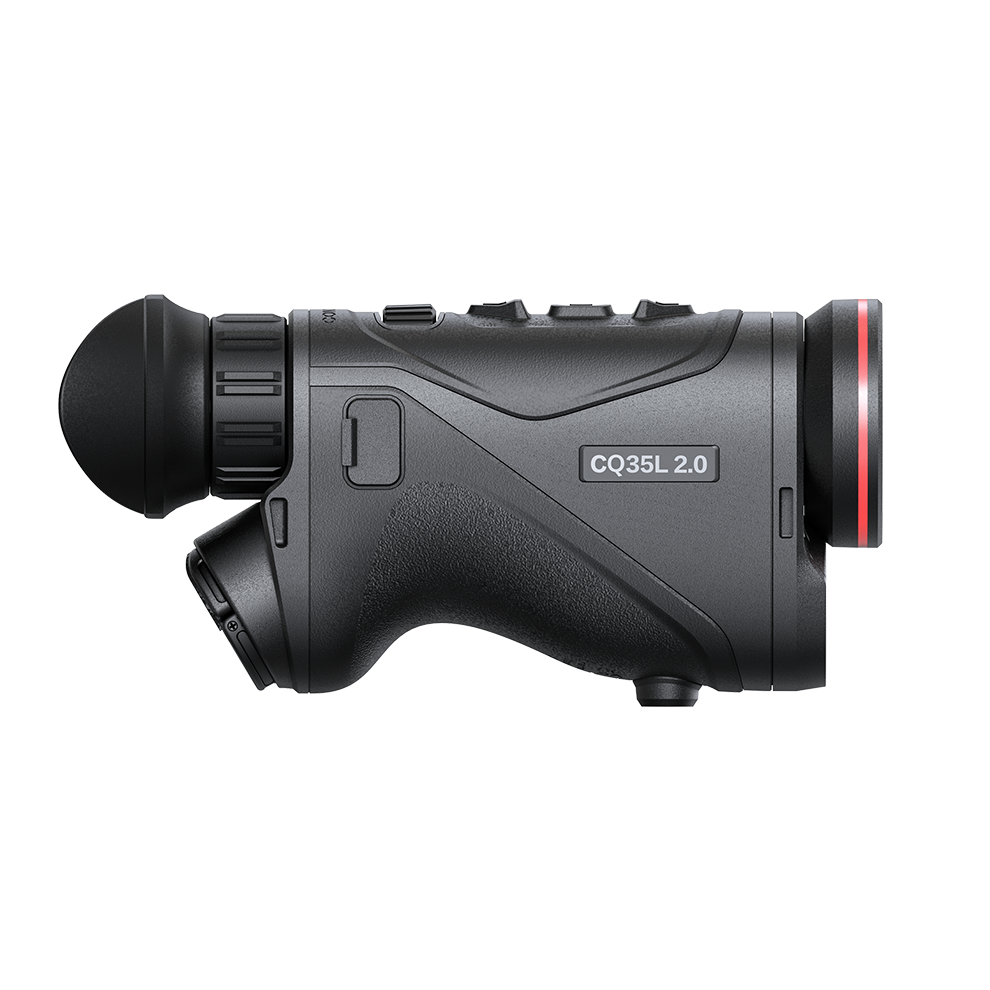

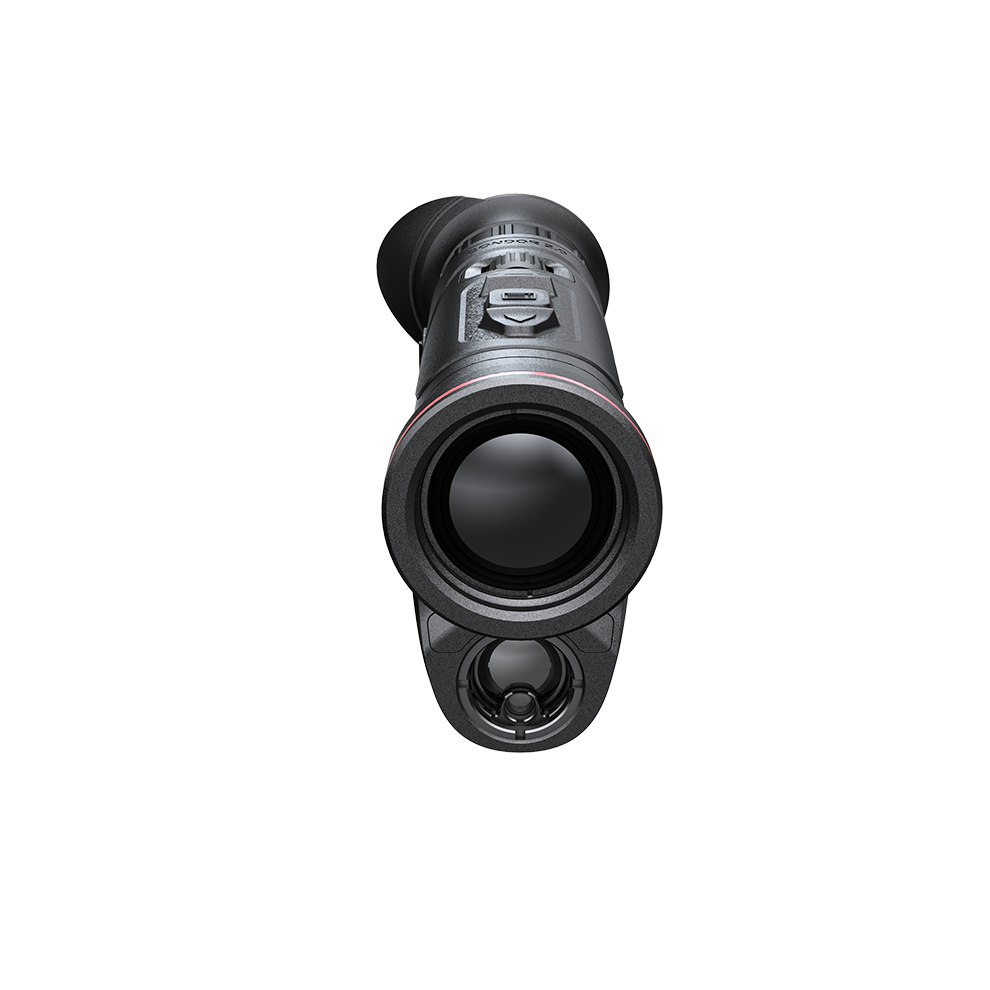

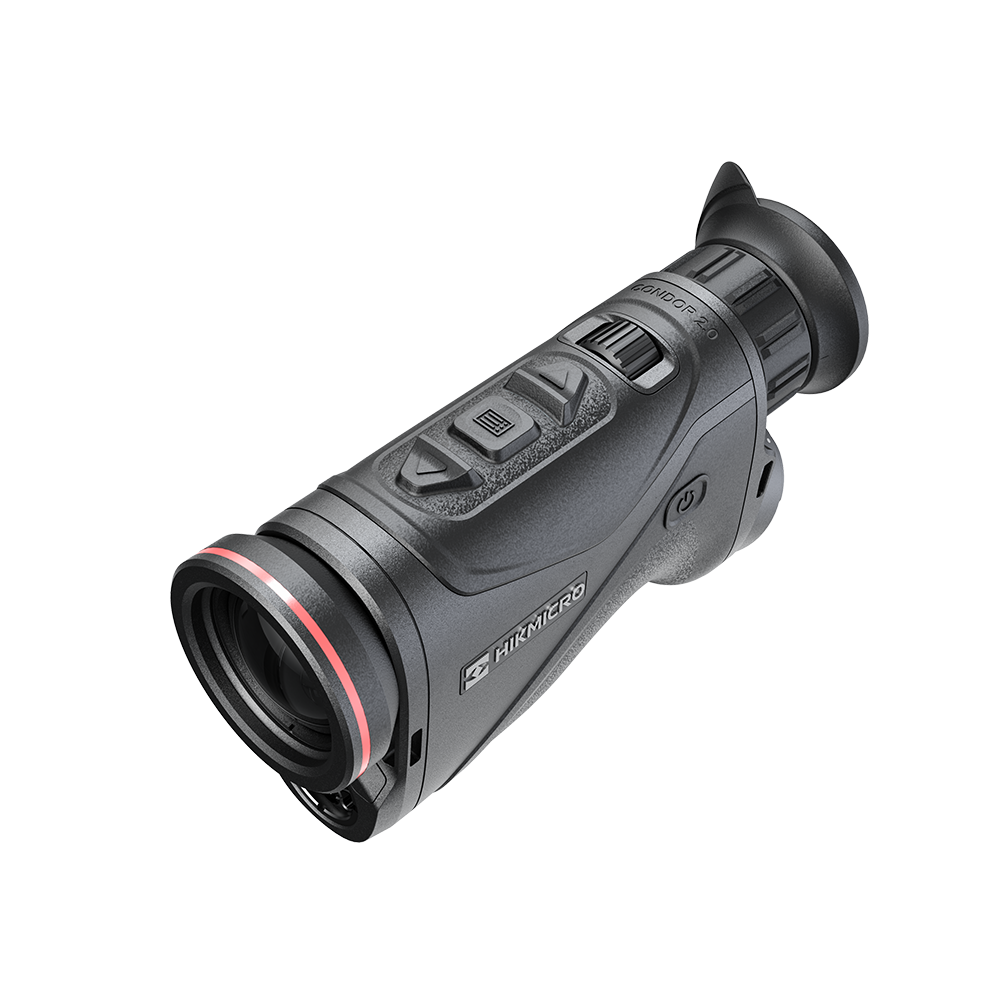

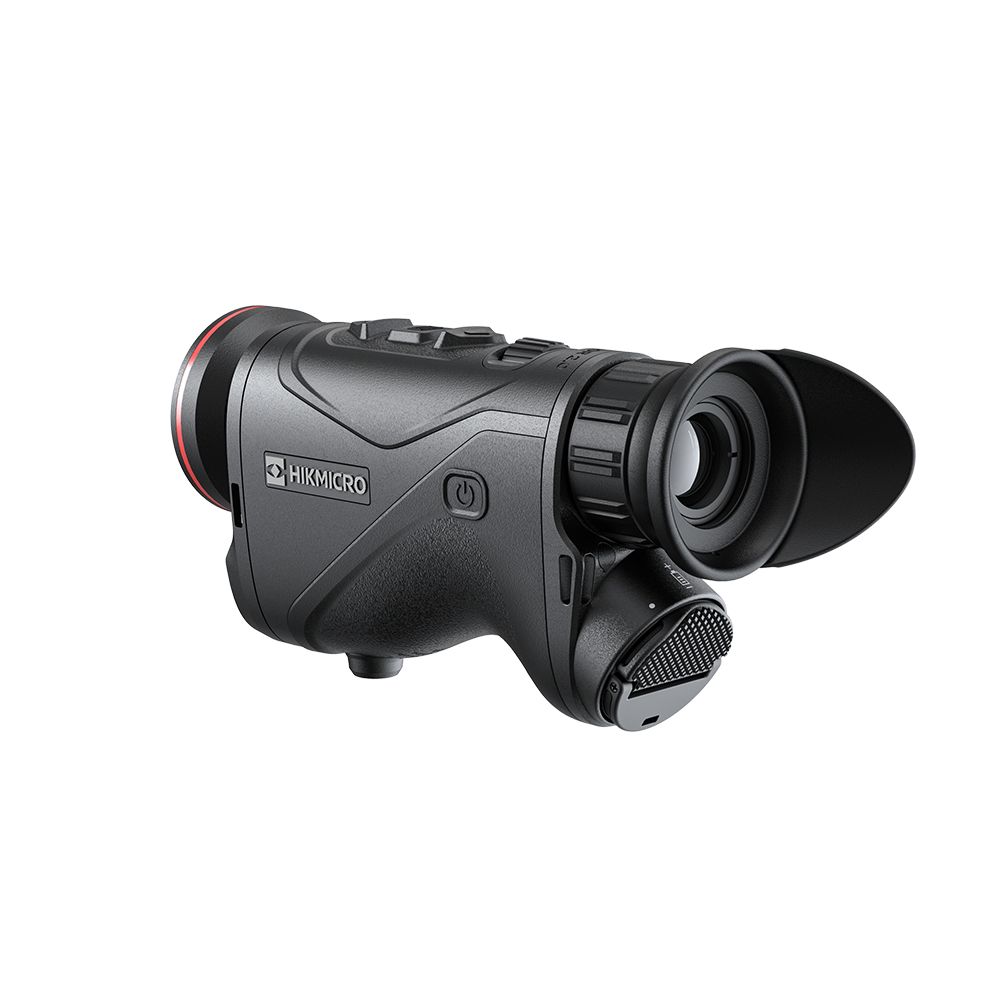

HIKMICRO CONDOR LRF CQ35L 2.0 handheld thermal monocular is equipped with a 640 × 512 @12 μm thermal detector with much higher sensitivity (NETD < 15 mK), ensuring the finest details catching no matter the weather or light conditions. A 0.49” 1920 × 1080 larger OLED display and the innovative shutterless system (HSIS) provide an immersive and smooth viewing experience. The laser rangefinder ensures precise distance measurement within the range of 1000 m. Maintaining the traditional premium cylindrical shape design, the monocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenarios.
- High sensitivity thermal module NETD < 15 mK (@25° C, F#=1.0)
- 640 × 512 resolution with 12 μm sensor
- 35 mm, F1.0 lens with detection range up to 1800 m
- 1920 × 1080 resolution 0.49-inch OLED display
- HIKMICRO Shutterless Image System (HSIS)
- 6.5 h+ continuous operation time with replaceable and rechargeable 21700 battery
- 458 g lightweight, ergonomic compact shape
- Intergrated laser rangefinder up to 1000 m
SPECIFICATIONS
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 640 × 512
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 15 mK (@25°C), F#=1.0
- Lens (Focal Length): 35 mm, F1.0
- Focus Mode: Rear Focus Wheel
- Detection Range: 1800 m
- Min. Focusing Distance: 3.5 m
- Magnification: 1.9 × - 15.2 × (8 × )
- Field of View(H × V), Degrees / m @100 m: 12.5° × 10.0°/21.9 m × 17.5 m @100 m
Image Display
- Display: 1920 × 1080, 0.49 inch, OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 8 mm
- Eye Relief: 15 mm
- Diopter (Range): -5 D to +3 D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, warm
- Contrast Adjustment: Yes
- Image Pro 2.0: Yes
- Zoom Pro: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
System
- Record Video: Yes
- Capture Snapshot: Yes
- Audio Recording: Yes
- Standby Mode: Yes
- Storage: Built-in Module (64 GB)
- PIP: Yes
- Hotspot: 2.4/5 G WiFi Waveband
- Hot Track: Yes
- Distance Measurement: Yes
- Local Album: Yes
Power Supply
- Battery Type: Replaceable and rechargeable 21700 battery
- Battery Operating Time: ≥6.5 h (@25°C, WiFi, Zoom Pro, LRF on)
- Type-C Power Supply: 5 V DC, 2 A (Supports External Power Supply, Support Direct Charging)
General
- Protection Level: IP67
- Dimension: 179.2 mm × 87.7 mm × 64.5 mm
- Work Temperature: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
- Weight: 458 g with Battery
Laser Rangefinder
- Safety Class for Laser: Class 1
- Wavelength: 905 nm
- Max. Measuring Range: 1000 m
- Measurement Accuracy: ± 1 m
- Min. Measuring Range: 10 m
In The Box
- HIKMICRO Condor CQ35L 2.0 (x1)
- Protective Bag (x1)
- Quick Start Guide (x1)
- Lint-Free Cloth (x1)
- Type-C Cable (x1)
- Battery Charger (x1)
- Battery (x2)
- Neck Strap (x1)
- Hand Strap (x1)
