FEATURES

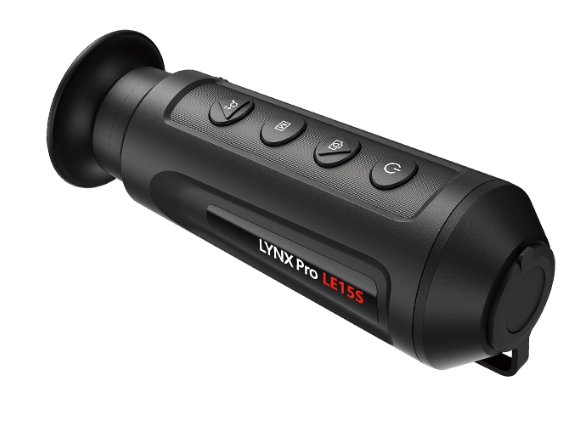

The LE15S is an exceptional entry-level choice for both forest and field hunters. With an upgraded OLED display, it provides hunters with more fluent and clearer images and an impressive 20.5m @100m field of view and up to 750m detection range in an open field.
Large OLED Display for More Immersive Observation
High resolution 0.32” 800 x 600 OLED is capable of lower power consumption, wider viewing angle, and richer colour.
High Frame Rate, Smoother Detailed Images
LYNX S series features filming at 50Hz. This refers to every image being enhanced with a higher dynamic range and effectively reducing eye strain when observing outdoors for a long time.
Convenient Brand New UI Design
The new UI design enhances the operation experience, quickly bringing up frequently used functions and not missing a single opportunity to spot your game.
Compact Size, Easy to Carry
Lightweight design of 310g/0.68 lb only.
Long Detection Range Breaks Through All Camouflage
With the advanced imaging detector and lens, the detection range of a 1.7 m target can reach up to 1200m.
Video and Snapshot
Onboard 8 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB Port.
Hotspot for Mobile App
The integrated hotspot module makes the Sight app a second display. Users can use digital zoom, video recording and other features on their phones.
More Advantages
- Standby Mode - Designed to save power consumption with screen off while other features on. The device can be activated in a short time by pressing the button.
- Smart Range Measurement - Measuring distance quickly with high accuracy based on the top and bottom of the target.
- 4 Colour Palettes - LYNX S series provides 4 colour palettes for different scenarios
- Large Digital Zoom - Digital zoom up to 8x offers better focus on small targets from a far distance
SPECIFICATIONS
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 256 × 192
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 35 mK (@ 25 °C),F# = 1.0
- Lens (Focal Length): 15mm, f1.0
- Detection Range: 750m
- Focus Mode: Focus Free
- Min. Focusing Distance: 10m
- Magnification: 2.2x-17.6x(8x)
- Field of View(H × V), Degrees / m @100m: 11.7° × 8.8° / 20.5 m × 15.4 m
- Display: 800 × 600, 0.32 inch, OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit Pupil: 6mm
- Eye Relief: 20mm
- Diopter (Range): ﹣5D to +4D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Record Video: Yes
- Capture Snapshot: Yes
- Audio Recording: Yes
- Standby Mode: Yes
- Storage: Built-in memory module (8 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Battery Type: Rechargeable Lithium Battery
- Battery Operating Time: 8 hours continuous running with hotspot function off (@ 25 °C) 6 hours continuous running with hotspot function on (@ 25 °C)
- Type-C Power Supply: 5V DC, 2 A Supports External Power Supply
- Protection Level: IP67
- Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
- Working Temperature: - 20 °C to 55 °C (- 4 °F to 131 °F)
- Weight: 280 g (0.62 lb)
