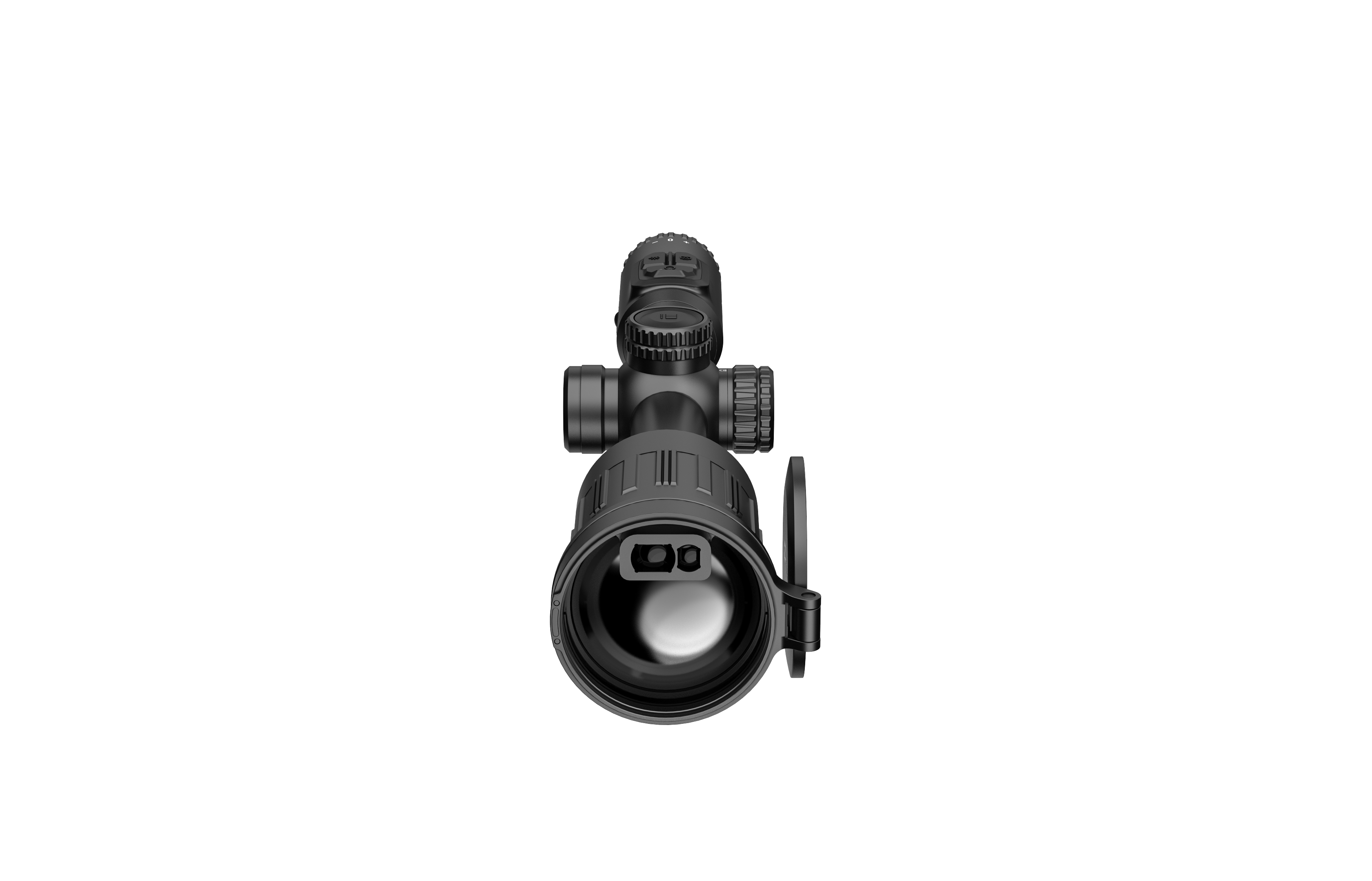

HIKMICRO SX60L V3 STELLAR 60MM LRF 1280x1024 THERMAL

Product Code:
202409191040
MPN:
SX60L
The ground-breaking 1280 thermal tube with a built-in 1000m lens LRF design ensures ultra-HD image clarity and compact size. The 60m thermal lens and 2.5x base magnification provide a wide field of view to 25.6m@100m and an ultra-long 3100m detection

(No reviews yet) Write a Review

FEATURES

The ground-breaking 1280 thermal tube with a built-in 1000m lens LRF design ensures ultra-HD image clarity and compact size. The 60m thermal lens and 2.5x base magnification provide a wide field of view to 25.6m@100m and an ultra-long 3100m detection range, offering hunters remarkable advantages in both open fields and forested regions.

Exceptional Image Quality

High-end Thermal Detector and Enhanced Visibility

HIKMICRO STELLAR 3.0 covers 384, 640 and 1280 thermal detector, delivering superior thermal imaging capabilities. Thanks to SX60L 3.0’s cutting-edge 1280x1024-pixel thermal sensor, it produces ultra-clear image with impressive details, perfect for precise trophy recognition. The device makes it easy to discern the animal's outline, anatomy, and unique behavioural traits with clarity.

Ultra-Sensitive Thermal Imaging 15mK Captures Finest Details

With the first breakthrough of HIKMICRO STELLAR 3.0, the NETD is less than 15mK, the device's ability to perceive temperature differences has reached a new level. The more sensitive the device, the stronger its perception of the surroundings, resulting in clearer images and the finest details. This allows thermal imaging technology to increasingly assist hunters in making every hunting decision.

1.03” OLED Large Display for Cinema-Quality Hunting Trips

HIKMICRO thermal imaging scope STELLAR 3.0 upgrades its display to a larger OLED screen to 1.03’’ with 2560x2560 resolution to enhance your immersive hunting trips, helping you to observe more details and get rid of eye fatigue after a long time using. Moreover, hunting can be more accurate with a larger display, as the shooter can see the impact points more clearly. It’s all up to you. Choose between sub-round or square viewing modes to suit your hunting style and preferences.

Seamless Viewing With Ground-breaking Shutterless (HSIS) Tech

HSIS (HIKMICRO Shutterless Image System) will cause no image quality loss, it is based on the continuous study of the different grey backgrounds, and it is a dynamic learning process. This eliminates the need for periodic calibration pauses, ensuring you never miss a critical moment in the field. Enjoy an uninterrupted viewing experience with HIKMICRO STELLAR 3.0’s innovative HSIS technology.

Innovative Image Pro 2.0 Algorithm Generates Rich Images

In hunting, observing the environment where the prey is located is just as important as observing the details of the prey itself. Image Pro 2.0 Algorithm in HIKMICRO STELLAR 3.0, with its ground-breaking image analysis algorithm, can provide the most detailed and rich images with less noise. It allows you to not only distinguish the details of the prey but also to observe the background environment it is in.

Redefine Shooting Accuracy and Experience

Fine-Tuned 1.3 cm @ 100m Clicks for Sharper Targeting

HIKMICRO thermal scope STELLAR 3.0 provides very accurate zeroing adjustments, as fine as 1.3 cm @100m. This makes it easier to set up your thermal imaging scope perfectly, helping you shoot more accurately and improve your hunting success.

1000m LRF Module in the Lens for Accurate Distance Measurement

Accurately ranging quarry helps to ensure an ethical shot. The innovative built-in lens laser range finder in the HIKMICRO STELLAR SQ50L 3.0 & SX60L 3.0 thermal scope not only maintains the traditional scope shape but also ensures hunters range-find up to 1,000m with an accuracy of ±1 meter.

Precise Long-Range Hunting Powered by Optimized Ballistic Calculation

HIKMICRO STELLAR 3.0’s optimized ballistic calculation ensures accurate shooting at any distance. The new ballistics calculation carries out automatic inclination angle compensation analysis and also supports customizing the colour and style of the suggested impact point, and optional bullet type for more accurate judgments during long-range hunting.

Quick Zeroing Either Via the Device or Sight App

Despite remote control, browsing & downloading, sharing incredible moments, and firmware updates, HIKMICRO SIGHT also can help you do STELLAR 3.0 quick zeroing. Simply configure the deviation of the impact point from the expected target via Sight app and synchronize to your scopes.

High Shock Resistance

Aluminium Alloy housing and rugged components enable HIKMICRO thermal imaging scope STELLAR 3.0 high shock resistance up to 1000g/0.4ms on larger calibers to .375 H&H, 12-gauge, and 9.3 × 64.

User-friendly Operation for Effortless Hunting

Upgraded Appearance, Rooted in Tradition

HIKMICRO STELLAR 3.0 thermal scope continues the classical-style design that fits with 30 mm standard mount rings, meeting the demands of professional hunters who value tradition. Moreover, it features a softer eyepiece, a magnetic lens cover, and a distinguishable focus ring, which can be operated intuitively even with gloves.

Ultra-Long Operation Time, No Exciting Moments Missed

Two built-in rechargeable batteries and one extra swappable 18650 battery give the HIKMICRO STELLAR 3.0 a long 9-hour playtime. Hunters can have fun without worrying about the batteries dying with this better power setup.

Instant Check the Exciting Moments At Local Album

The recoil-activation function can record a video before and after you shoot, to better help you clarify whether you get your game. The videos are saved in the local album of HIKMICRO thermal imaging scope STELLAR 3.0 provides quick and immediate checking.

SPECIFICATIONS

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 1280×1024
Frame Rate: 25Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 18 mK (@25°C),F#=1.0
Lens (Focal Length): 60mm, F1.0
Detection Range: 3100m
Focus Mode: Focus Ring
Field of View(H × V), Degrees / m @100m: 14.6°×11.7°/25.6m×20.5m
Min. Focusing Distance: 6m
Magnification: 2.5×-28.5× (Support 1× step value of continuous zooming)

Image Display

Display: 2560x2560,1.03 inch OLED
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -4D to 4D
Tone Adjustment: Cold, Warm
Zoom Pro: No
HSIS (HIKMICRO Shutterless Image System): No

General

Protection Level: IP67
Weight: 1000g without external battery
Dimension: 452.6mm x 94.3mm x78.9mm
Mounting: Standard 30mm
Working Temperature: -30 °C to 55 °C (-22 °F to 131°F)
Centre Height: 41mm

System

Record Video: On-board Video Recording
Capture Snapshot: Yes
Hotspot: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64 GB)
PIP: Yes
Hot Track: Yes
Distance Measurement: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Freeze Zeroing: Yes
Max. Recoil: 1000g/0.4ms
Local Album: Yes
Zeroing Profiles: 5
Ballistic Calculation: Yes

Power Supply

Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Battery Operating Time: 9 hours continuous running (@25°C, LRF on)
Type-C Power Supply: 5 V DC/2 A, USB Type-C interface Supports QC3.0
* Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.

Laser Rangefinder

Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ±1 m
LRF Module in Lens: Yes
Min. Measuring Range: 10m
