FEATURES

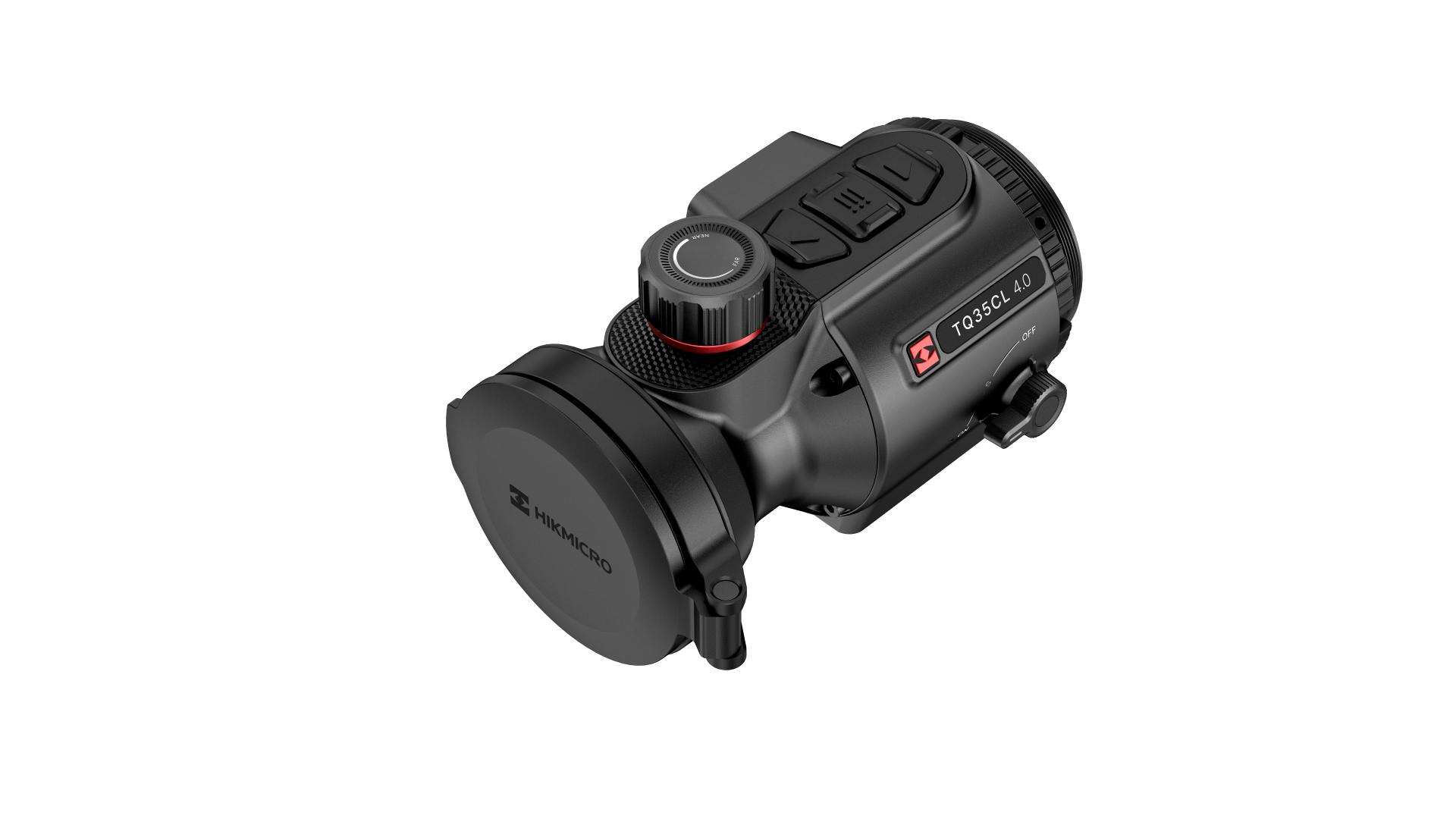

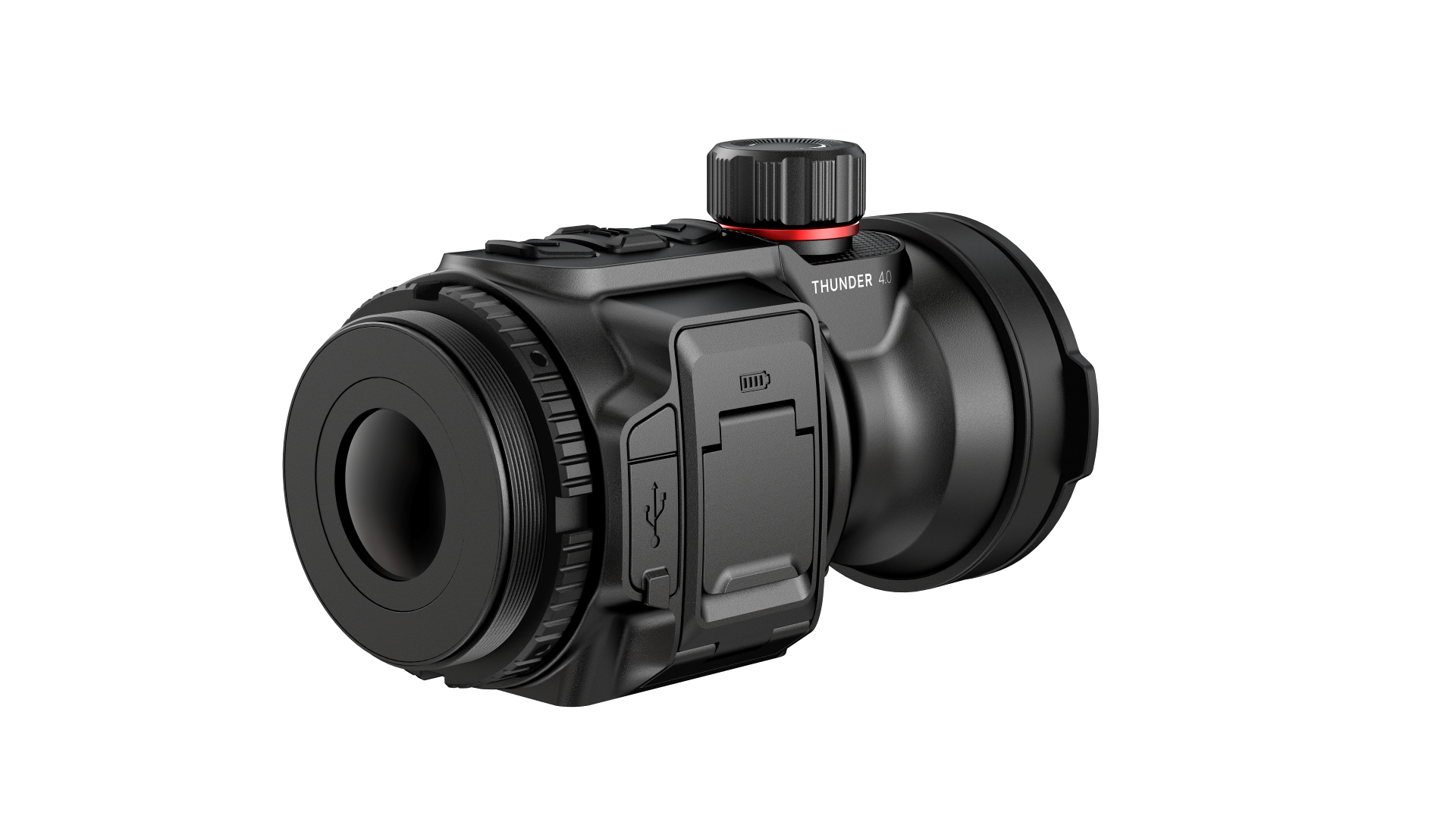

HIKMICRO THUNDER TQ35CL 4.0 Thermal Monocular is equipped with an unparalleled powerful thermal detector, with higher sensitivity and the latest image processing algorithm, ensuring users catch the finest details no matter the weather or light conditions. With a 1920x1080 OLED larger display, THUNDER 4.0 provides a better visual experience.
- 640 x 512 resolution @12μm thermal detector
- High sensitivity thermal module NETD ＜ 12 mK (@25°C, F# = 1.0)
- 35mm, F1.0 lens with detection range up to 1800m
- 1920 × 1080 resolution 0.49-inch OLED display
- Built-in lens laser rangefinder up to 1200m
- HIKMICRO Shutterless Image System (HSIS)+Sync Pro
- 6h continuous operation
- High shock resistance up to 6000J
- HIKMICRO Image Pro 4.0
SPECIFICATIONS
|
Thermal Module |
|
|
Image Sensor |
Uncooled Focal Plane Arrays |
|
Max. Resolution |
640 x 512 |
|
Frame Rate |
50Hz |
|
Pixel Interval |
12μm |
|
Response Waveband |
8μm to 14μm |
|
Lens (Focal Length) |
35mm, F1.0 |
|
NETD |
Less than 12mK (25 °C, F#=1.0) |
|
Detection Range |
1800m |
|
Focus Mode |
Focus Knob |
|
Min. Focusing Distance |
10m |
|
Magnification |
1x |
|
Field of View(H × V), Degrees / m @100m |
12.5°x8.0°/21.9m x 14.0m@100m |
|
Recommended Magnification of the Day Scope |
1-15x |
|
magnification of monocular mode |
2.3x-18.4x (8x) |
|
Image Display |
|
|
Display |
1920x1080, 0.49 inch, OLED |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
|
Exit Pupil |
25mm |
|
Eye Relief |
20mm |
|
Image Pro 4.0 |
Yes |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, Warm |
|
HSIS (HIKMICRO Shutterless Image System) |
Yes |
|
Sync Pro |
Yes |
|
System |
|
|
Record Video |
On-board Video Recording |
|
Capture Snapshot |
Yes |
|
Virtual Reticle |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
Hotspot |
Yes |
|
Reticle |
No |
|
Recoil-activation Recording |
Yes |
|
Audio Recording |
Yes |
|
Max. Recoil |
6000J |
|
Local Album |
Yes |
|
Image Calibration |
Yes |
|
Zeroing Profiles |
5 |
|
Power Supply |
|
|
Battery Type |
HM-3840DC |
|
Battery Operating Time |
≥6h (25 °C, with hotspot off and LRF on) |
|
Type-C Power Supply |
5 VDC, 2 A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
125mm × 64mm × 64mm |
|
Weight |
542g with Battery |
|
Working Temperature |
-30 °C to +55 °C (-22 °F to 131°F) |
|
Body Material |
Body & Lens Cover: Magnesium Alloy |
|
Center Height |
31mm |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905nm |
|
Max. Measuring Range |
1200m |
|
Measurement Accuracy |
±1m ＜400m |
|
Min. Measuring Range |
10m |
|
LRF Module in Lens |
Yes |
