FEATURES

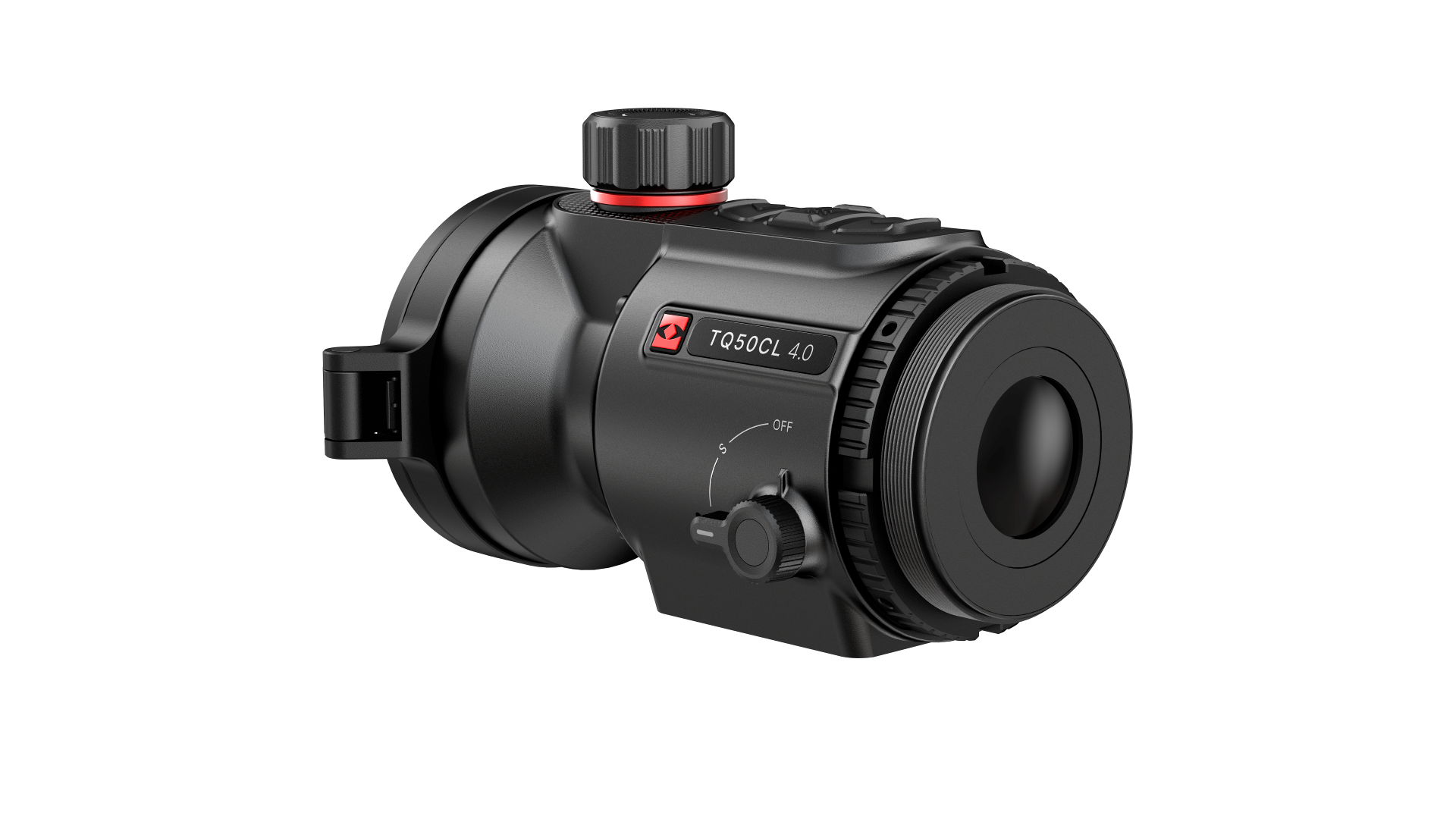

HIKMICRO TQ50CL 4.0 features a high-sensitivity 640×512 thermal detector with a NETD of less than 12mK. Its 50mm lens, powered by Image Pro 4.0, delivers fine details in fields and forests, while the zeroing-free design with 1 MOA adjustment accuracy enables precise point-of-impact adjustment. Its compact form keeps the clip-on setup streamlined and easy to handle.
- Key Feature
- 640 x 512 resolution @12μm thermal detector
- High sensitivity thermal module NETD ＜ 12 mK (@25°C, F# = 1.0)
- 50mm, F1.0 lens with detection range up to 2600m
- 1920 × 1080 resolution 0.49-inch OLED display
- Built-in lens laser rangefinder up to 1200m
- HIKMICRO Shutterless Image System (HSIS)+Sync Pro
- 6h continuous operation
- High shock resistance up to 6000J
- HIKMICRO Image Pro 4.0
SPECIFICATIONS
|
Thermal Module |
|
|
Image Sensor |
Uncooled Focal Plane Arrays |
|
Max. Resolution |
640 x 512 |
|
Frame Rate |
50Hz |
|
Pixel Interval |
12μm |
|
Response Waveband |
8μm to 14μm |
|
NETD |
Less than 12mK (25 °C, F#=1.0) |
|
Lens (Focal Length) |
50mm, F1.0 |
|
Focus Mode |
Focus Knob |
|
Detection Range |
2600m |
|
Min. Focusing Distance |
10m |
|
Magnification |
1x |
|
Field of View(H × V), Degrees / m @100m |
8.8° × 7.0°/15.4m x 12.2m @100m |
|
Recommended Magnification of the Day Scope |
1-15x |
|
magnification of monocular mode |
3.4x-27.2x (8x) |
|
Image Display |
|
|
Display |
1920x1080, 0.49 inch, OLED |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
|
Exit Pupil |
25mm |
|
Image Pro 4.0 |
Yes |
|
Eye Relief |
20mm |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, Warm |
|
HSIS (HIKMICRO Shutterless Image System) |
Yes |
|
Sync Pro |
Yes |
|
System |
|
|
Record Video |
On-board Video Recording |
|
Capture Snapshot |
Yes |
|
Virtual Reticle |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
Hotspot |
Yes |
|
Reticle |
No |
|
Audio Recording |
Yes |
|
Recoil-activation Recording |
Yes |
|
Max. Recoil |
6000J |
|
Local Album |
Yes |
|
Image Calibration |
Yes |
|
Zeroing Profiles |
5 |
|
Power Supply |
|
|
Battery Type |
HM-3840DC |
|
Battery Operating Time |
≥6h (25 °C, with hotspot off and LRF on) |
|
Type-C Power Supply |
5 VDC, 2 A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
119.5mm × 64mm × 64mm |
|
Weight |
560.3g with Battery |
|
Working Temperature |
-30 °C to +50°C (-22 °F to +122°F) |
|
Body Material |
Body & Lens Cover: Magnesium Alloy |
|
Center Height |
31mm |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905nm |
|
Max. Measuring Range |
1200m |
|
Measurement Accuracy |
±1m ＜400m |
|
Min. Measuring Range |
10m |
|
LRF Module in Lens |
Yes |
