FEATURES

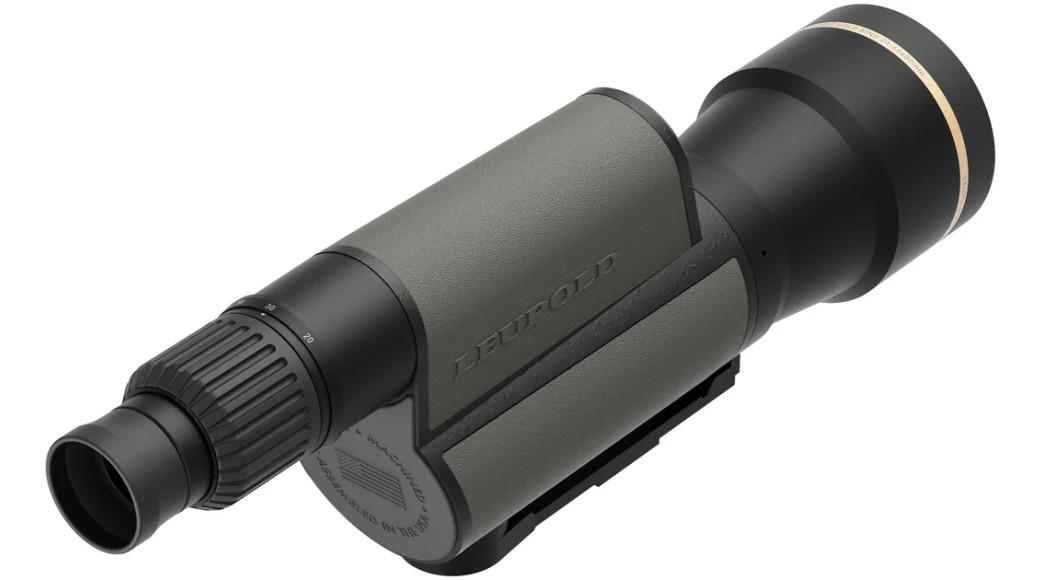

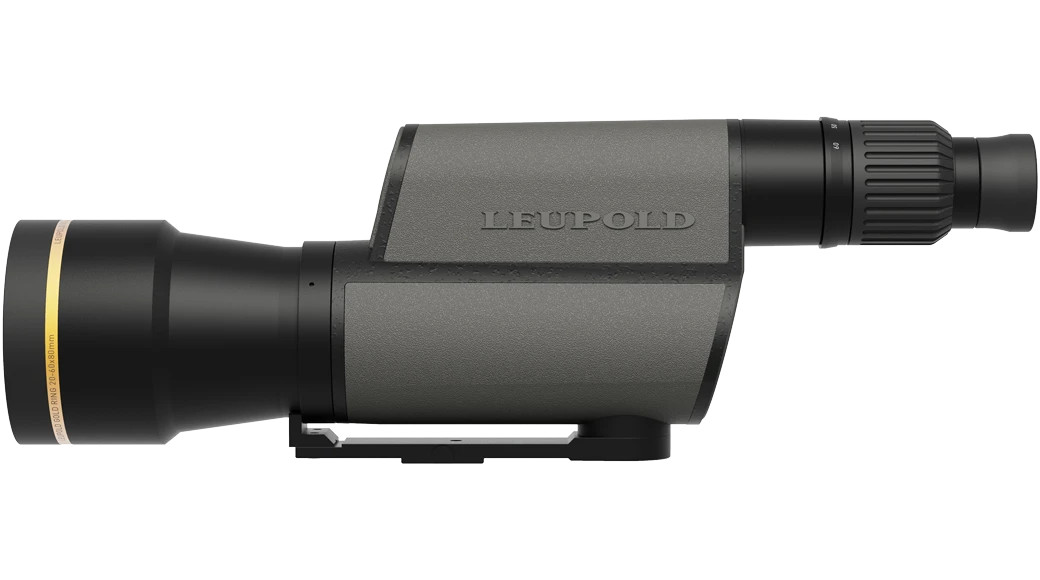

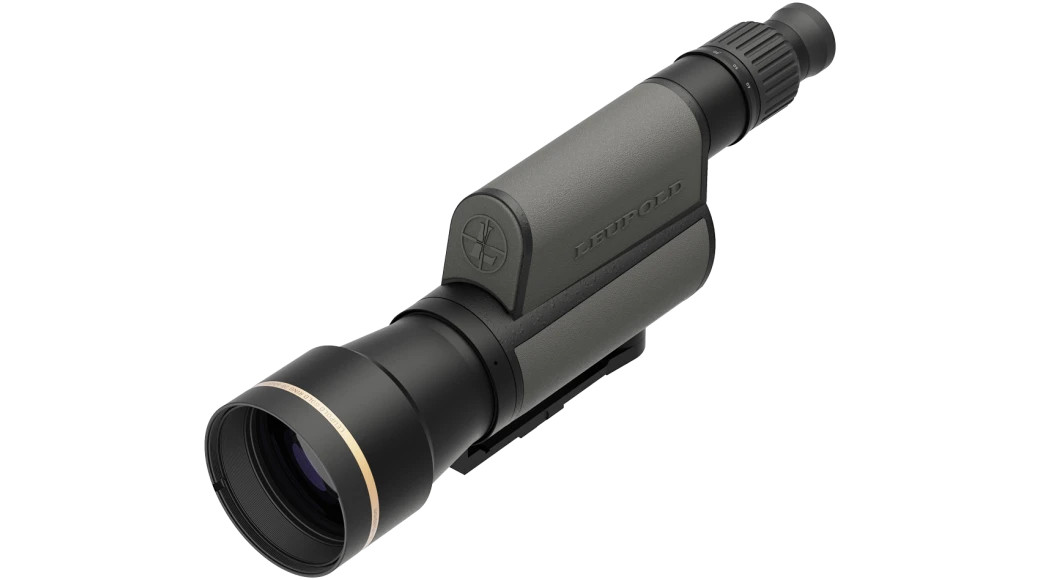

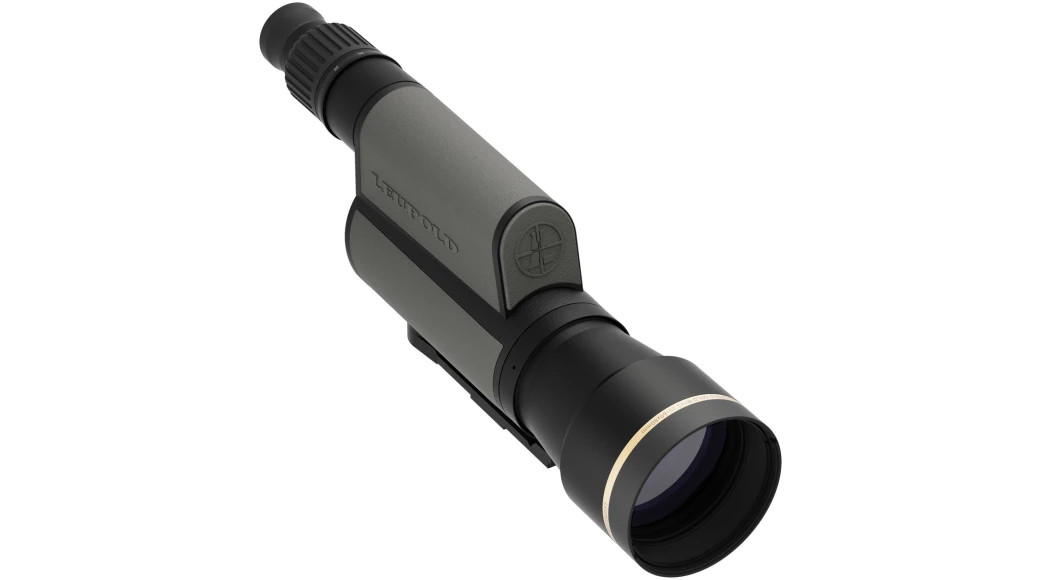

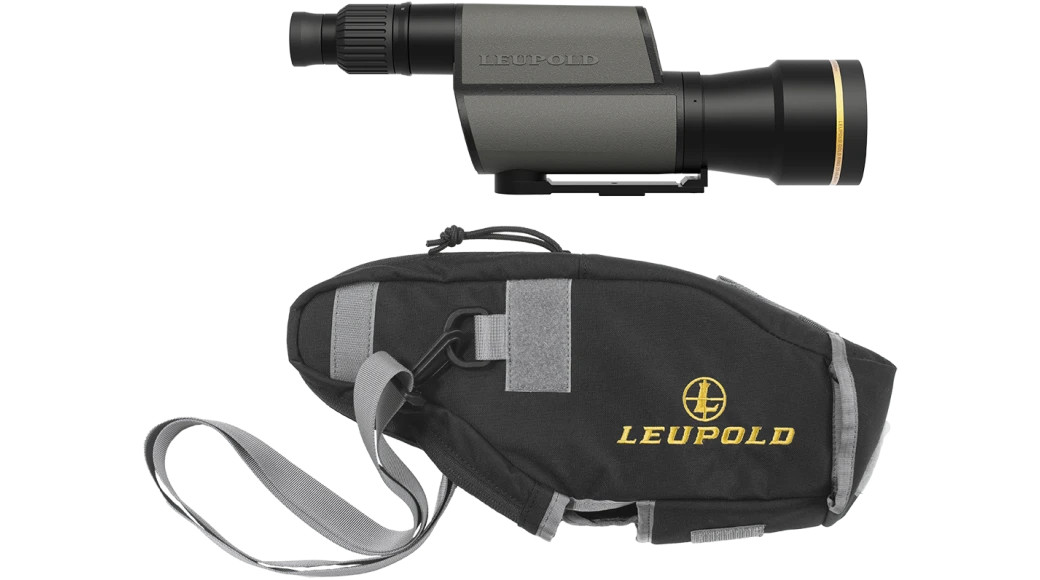

Reach out to extreme distances and glass with the kind of resolution, contrast, and colour fidelity you need to find game in any conditions. Even in low light, this 20-60x80mm spotting scope achieves a level of resolution that's a major advantage in the field. Add the optional Impact Reticle, and you get an MOA scale in the front focal plane for fast and accurate shot calling and trophy measurement at any magnification.
Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
Like all Leupold® spotting scopes, it's fogproof, waterproof, and guaranteed to perform for life. It's also designed, machined, and assembled in the USA.
Professional-Grade Optical System - Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Folded Light Path - Folded light path technology helps achieve a compact, lightweight design.
Diamond Coat 2 - Exterior lens surfaces are treated with DiamondCoat 2, an ion-assist lens coating, for higher light transmission and the greatest level of abrasion resistance we've ever offered. DiamondCoat 2 has the additional advantage of assisting in light transmission, for greater brightness, clarity and contrast, and will prove its worth in the wildest places on earth.
Fully Multi-Coated Lens System - Our fully multi-coated lens system ensures maximum brightness for clarity, contrast, and colour fidelity.
Tripod Ready - A built-in 1/4-20 rotatable tripod adapter port makes it easy to mount to a tripod.
Carbon Fibre Housing - A rugged carbon fibre housing protects the optic.
Waterproof and Fogproof - Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.
RETICLE
IMPACT
- Patented Leupold® design specifically for our Gold Ring® Spotting Scope line
- Incorporates the MOA measurement system, with a grid style pattern
- Features 1 MOA hash marks on horizontal and vertical posts
- Grid is 16 MOA wide and 32 MOA tall
- Every fourth line is numbered with the MOA value for quick reference points
- Makes calling shot corrections straightforward with multiple well-defined aiming points
- Best used with a rifle scope featuring one of our Impact™ reticles
- 1 MOA is approximately 1 inch at 100 yards
- Front (first) focal plane
SPECIFICATIONS
- Eyepiece Style: Straight
- Interchangeable Form-Fit Eyecups (Spotting Scopes): No
- Reticle: Impact
- Tripod Included: No
- Length (in): 15.5
- Weight (oz): 61.8
- Magnification Max: 60
- Magnification Min: 20
- Objective Diameter (mm): 80
- Linear FOV Low Mag (ft@1000yds): 121
- Linear FOV High Mag (ft@1000yds): 42
- Angular FOV Low Mag (Degrees): 2.3
- Angular FOV High Mag (Degrees): .8
- Eye Relief Low Mag (mm): 30
- Eye Relief High Mag (mm): 30
- Exit Pupil Low Mag: 4.1
- Exit Pupil High Mag: 1.3
- Close Focus Distance (ft): 75
