FEATURES

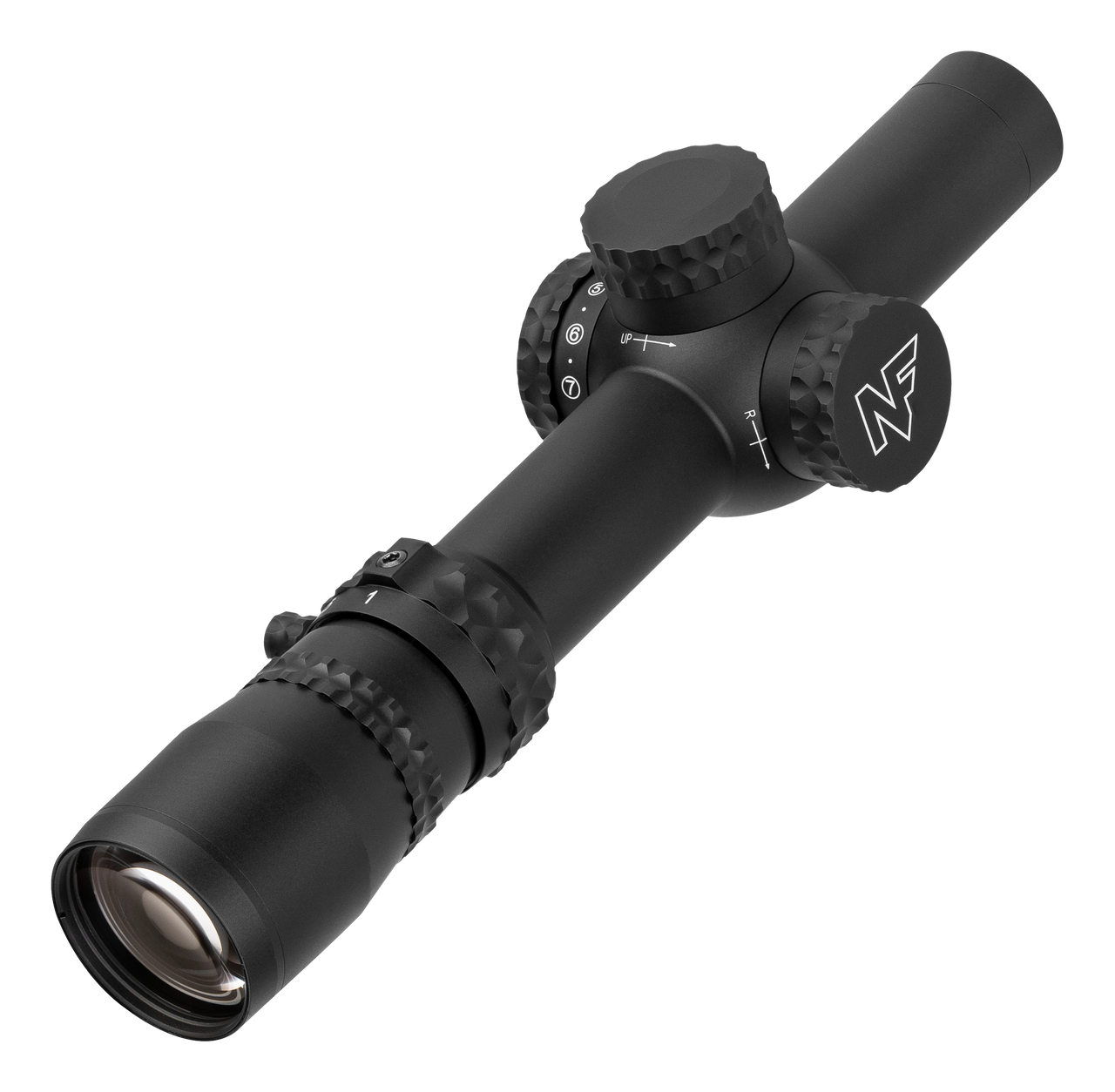

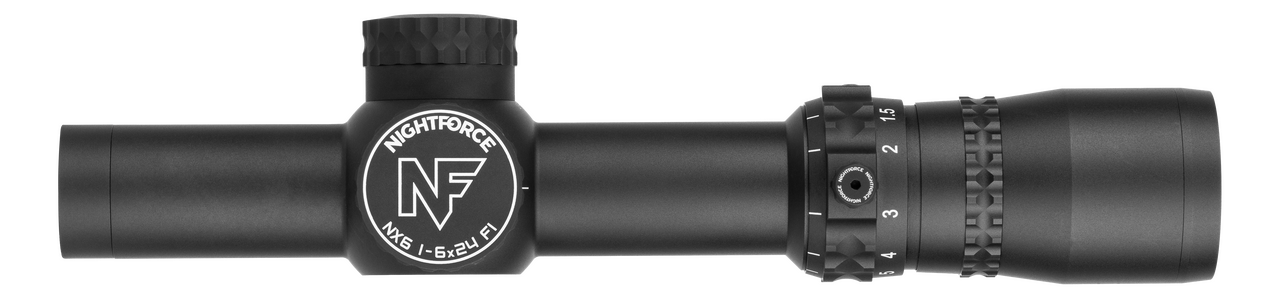

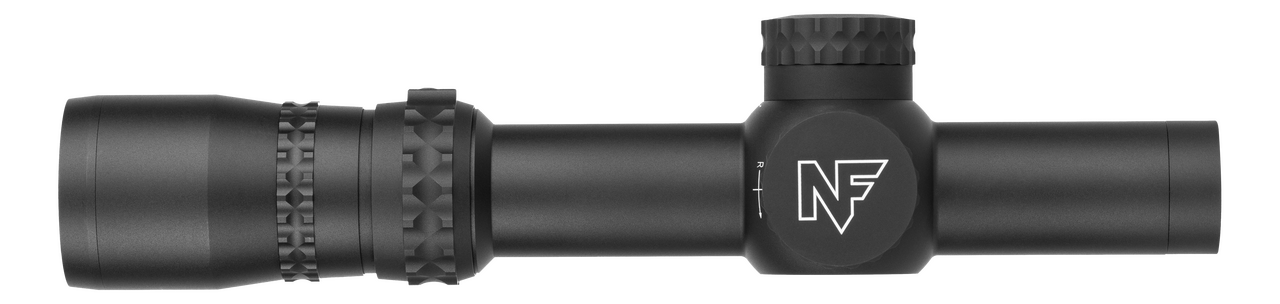

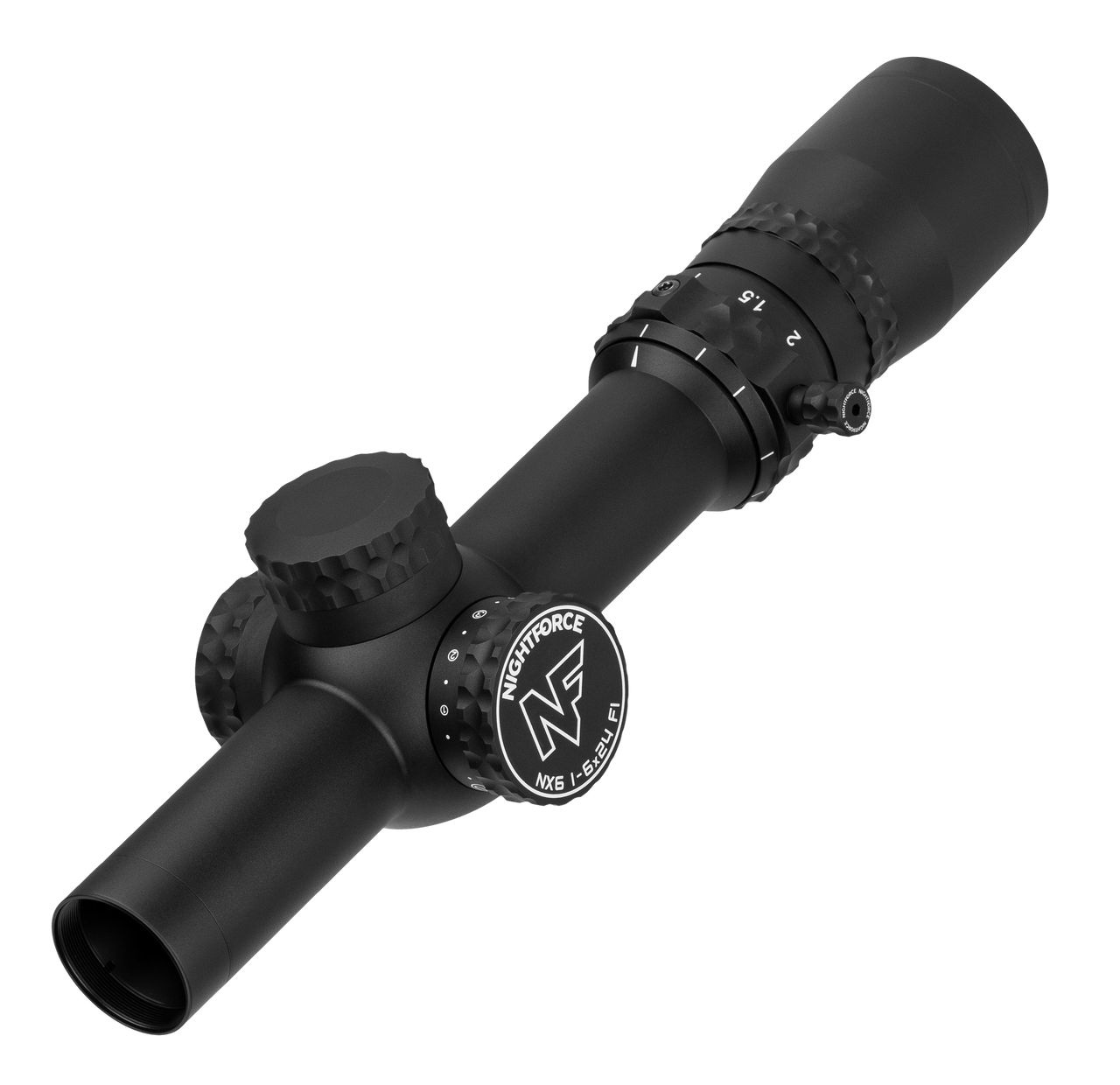

Lightweight and rugged, the NX6™ is equally at home on patrol rifles, multi-gun rigs, and hunting platforms. The 1-6x24 F1 is equipped with the proven FC-DMx™ reticle, featuring red dot speed up close and intuitive elevation and windage holds for confidence at range. These features provide outdoorsmen and competitors with enhanced performance in a single precision optic.
RETICLE
FC-DMx
The Nightforce FC-DMx™ reticle is designed to give maximum capability at 1x and 8x. The segmented centred circle measures 4 MRAD and is daylight bright visible for excellent low light and super bright conditions. The open centre allows for clarity of the target and better situational awareness, without unnecessary clutter. A .2 MRAD centre dot provides a precise aiming point at high magnification. The 1 MRAD aiming grid is specifically designed for easy elevation and wind holds.
SPECIFICATIONS
- Magnification Range: 1-6x
- Focal Plane: First
- Overall Length: 10.2 in/259 mm
- Weight: 18.9 oz/536 g
- Body Tube Diameter: 30 mm
- Mounting Length: 6.4 in/162 mm
- Elevation Feature: Capped, Finger Adjustable
- Click Value: .2 MRAD
- Internal Adjustment Range:
- E: 34.9 MRAD
- W: 34.9 MRAD
- Parallax Adjustment: Fixed @ 125 yd/114 m
- Field of View (@100 yd/m):
- 1x: 116.1 ft/38.7 m
- 6x: 19.1 ft/6.4 m
- Eye Relief: 4.0 in/101 mm
- Exit Pupil:
- 1x: 7.4mm
- 6x: 4.0mm
- Illumination: Daylight Visible, Externally Adjustable
- Power Throw Lever: Standard
- Reticle: FC-DMx
- Colour: Black
