FEATURES
Industryʼs First Magnetic Charging Cover: The Osight X boasts a pioneering Magnetic Charging Cover featuring a battery display that reveals the real-time battery levels for both the cover and the optic, making uncertainty certain.
Durable OAL™ Housing Material: The OAL™ housing is tougher, stronger, and nearly as lightweight as industry-standard 7075 aluminum, ensuring durability and a professional edge over time.
Large Field of View with Multi-Coated Lens: The advanced anti-reflective lens coatings maximize light transmission for impressive clarity, enabling you to swiftly capture targets, with precision and confidence.
Most Common Footprint: By adopting the industry-standard mounting footprint (Ruggedized Miniature Reflex, 407c/507c footprint) for optic cuts, the Osight X ensures versatility and ease of integration(use included screws).
3 MOA Dot & 32 MOA Circle: Switching between dot-and-circle, dot-only, or circle-only reticles, you can tailor your aiming solution to any shooting scenario. The sharp and bright dot-and-circle reticle provides a cutting-edge aiming experience.

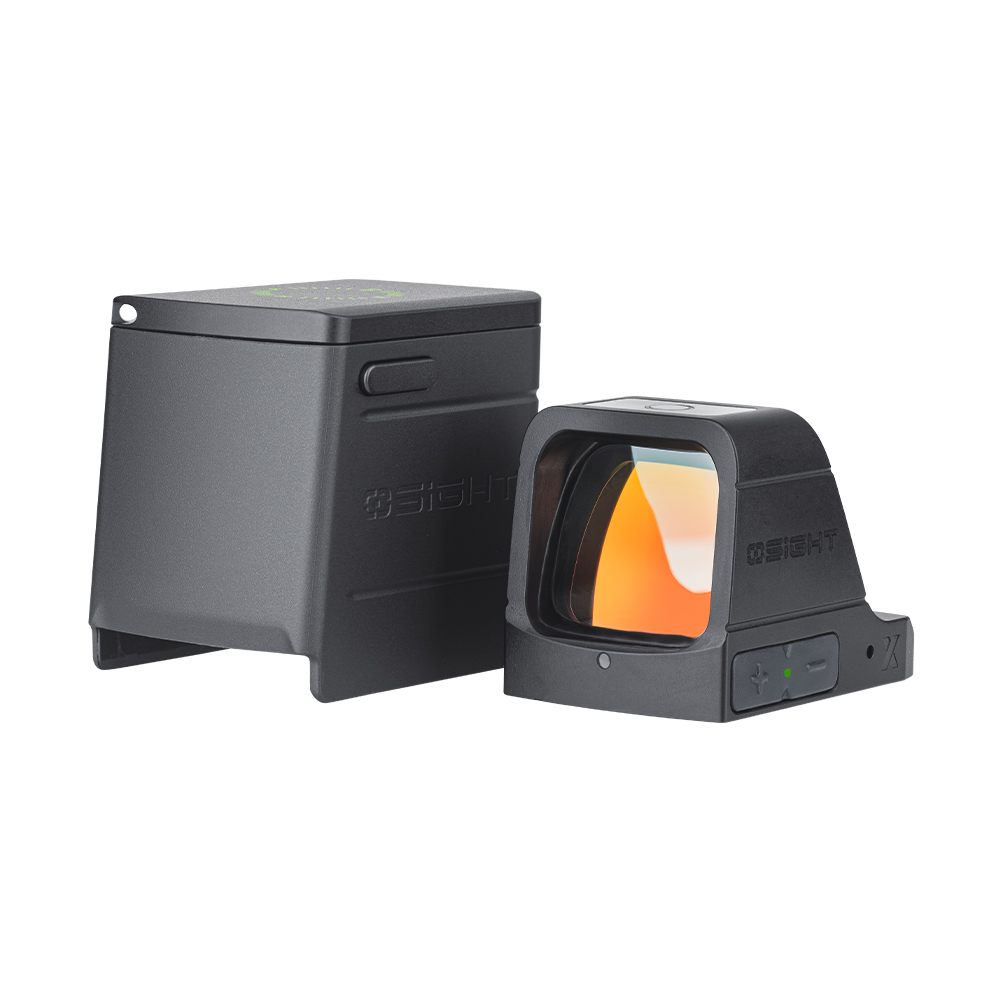

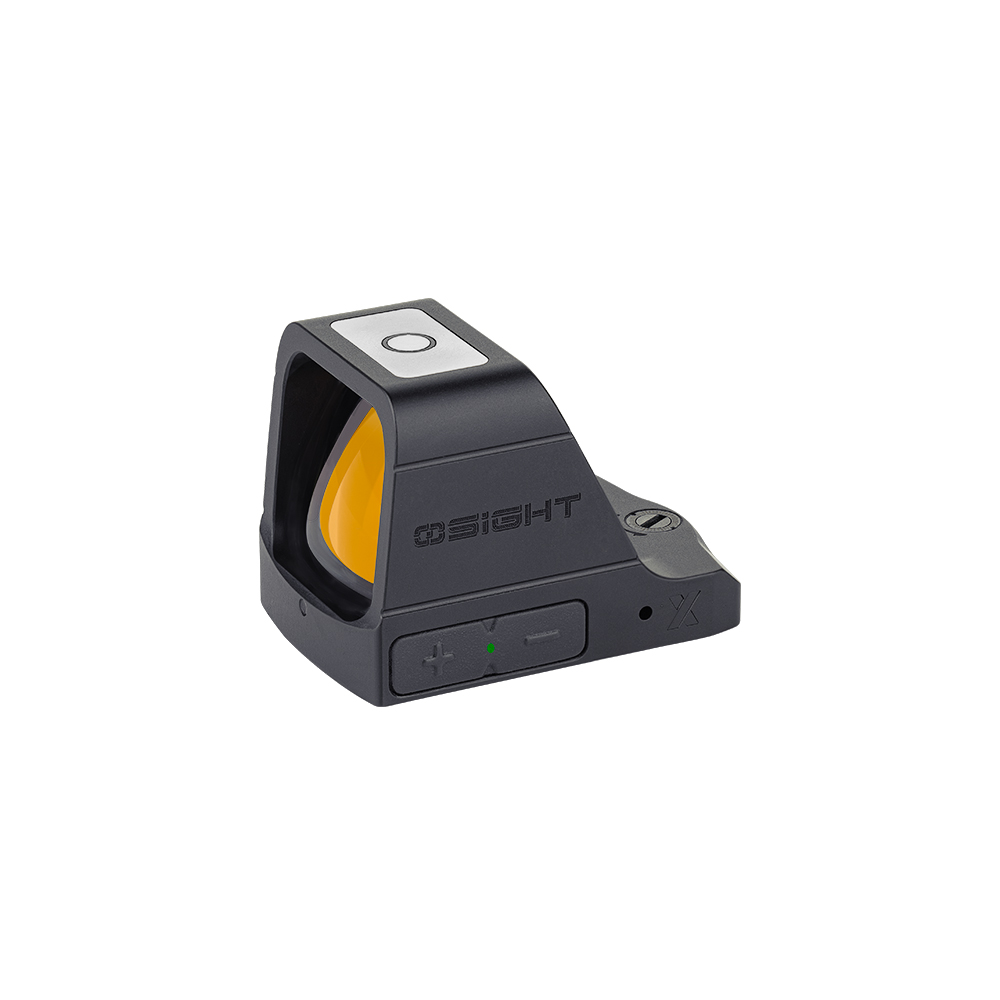

- The Osight X is a high-performance optic designed for competition, training, and tactical use.
- It features a proprietary OAL™ housing and a cutting edge Magnetic Charging Cover with an easy to read battery indicator.
- The optic offers a large field of view and an advanced multi-coated lens for exceptional clarity and a versatile multi reticle system (3 MOA Dot, 32 MOA Circle, or both) for precision shooting and rapid target acquisition.
- Engineered for versatility, it can be mounted directly onto slides with Ruggedized Miniature Reflex optic cut and seamlessly adapts to other slides using an adapter.
Universal Mounting
- Industry-standard mounting footprint (Ruggedized Miniature Reflex, 407c/507c footprint) for broad product compatibility.
Compatible Charging Cover
- The redesigned charging cover is compatible with suppressor/optic height rear sights, delivering superior versatility and performance.
Motion Sensor
- Powers up illumination when it senses the slightest movement and powers down after 10 minutes of inactivity to extend battery life.
Light Sensor, Yet More Flexible
- While enjoying the convenient auto-sensing, you can still manually adjust the brightness up or down by one level to align with your preferences.
Keep Power Under Your Control

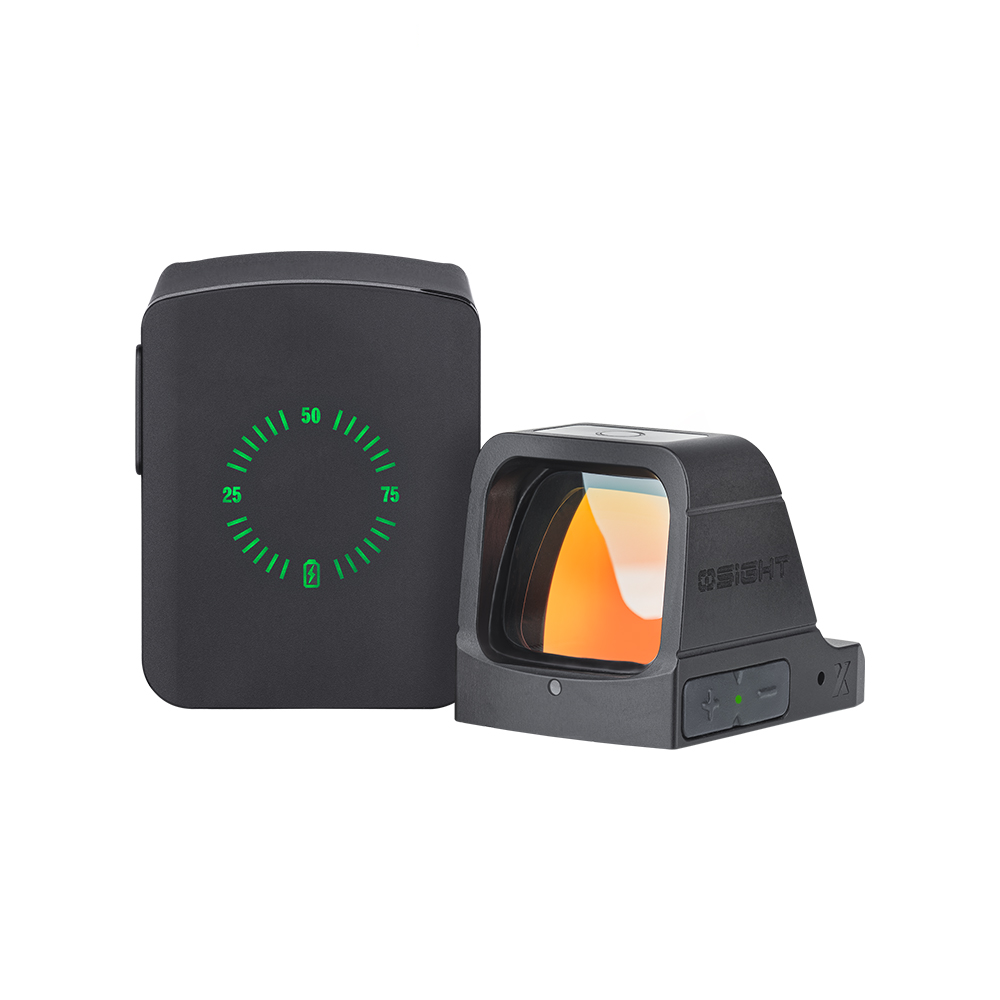

- The patent-pending Magnetic Charging Cover features an intuitive battery display that reveals the real-time battery levels for both the cover and the optic, changing uncertainty to certainty.
Reliable Charging, Anytime, Anywhere
- A swift snap is all it takes to recharge your optic, ensuring convenience on the go. Recharge the optic magnetically and the cover via USB-C.
- 57,000 hours - on level 3 brightness with dot only
- 228,000 hours - total runtime with charging cover
- *A fully charged cover can power the optic three times, and the motion sensor helps conserve energy, together ensuring impressive runtime.
OAL
- OAL is our proprietary aluminium alloy. It is nearly as light as 7075 aluminium but far stronger and tougher, offering superior performance.
- 73% harder than 6061 aluminium
- 19% harder than 7075 aluminium
- 33% stronger in yield strength than 7075 aluminium
- 24% stronger in tensile strength than 7075 aluminium
- 44% stronger in yield strength than TA2 Titanium
SPECIFICATIONS
MATERIALS
- Charging Cover Material: OAL™ (O-Aluminum)
- Optic Material: AL6061+PC
GENERAL DATA
- Charge Type:
- Optic: Magnetic Charging
- Charging Cover: USB-C Charging
- Power Source:
- Optic: Built-in 170mAh Rechargeable Lithium Polymer Battery
- Charging Cover: Built-in 800mAh Rechargeable Lithium Polymer Battery
- Adjustment: 1 MOA per Click
- Reticle Type: 3 MOA Dot & 32 MOA Circle
- Multi-Coatings: Yes
- Light Sensor Technology: Yes
- Motion Sensor Function: Yes
- Unlimited Eye Relief: Yes
- Brightness Settings: 10 DL & 2 NV
- Light Wavelength: 660 nm
- Reticle Colour: Red
- Magnification: 1x
- Parallax Free: Yes
- W&E Travel Range: ± 45 MOA
- Torque Specification:
- M3 15 in-lbs Per Screw
- 4-40 15 in-lbs Per Screw
- 6-32 17 in-lbs Per Screw
- 6-40 17 in-lbs Per Screw
- Window Size: 0.94 * 0.85 in (24 * 21.5mm)
TECHNICAL CHARACTERISTICS
- Waterproof:
- Optic: IPX6
- Charging Cover: IPX4
- Weight (g / oz):
- Optic: 1.62 oz (46g) (Including Battery)
- Charging Cover: 1.76 oz (50 g)
- Packaging: Magnetic Closure Box
- Use: Competition and Training
- Dimensions (Length x Width x Height):
- Optic: 1.77 * 1.18 * 1.30 in (45 * 30 * 33 mm)
- Charging Cover: 1.85 * 1.38 * 1.73 in (47 * 35 * 44 mm)
- Storage Temperature: -20~60℃ (-4~140°F)

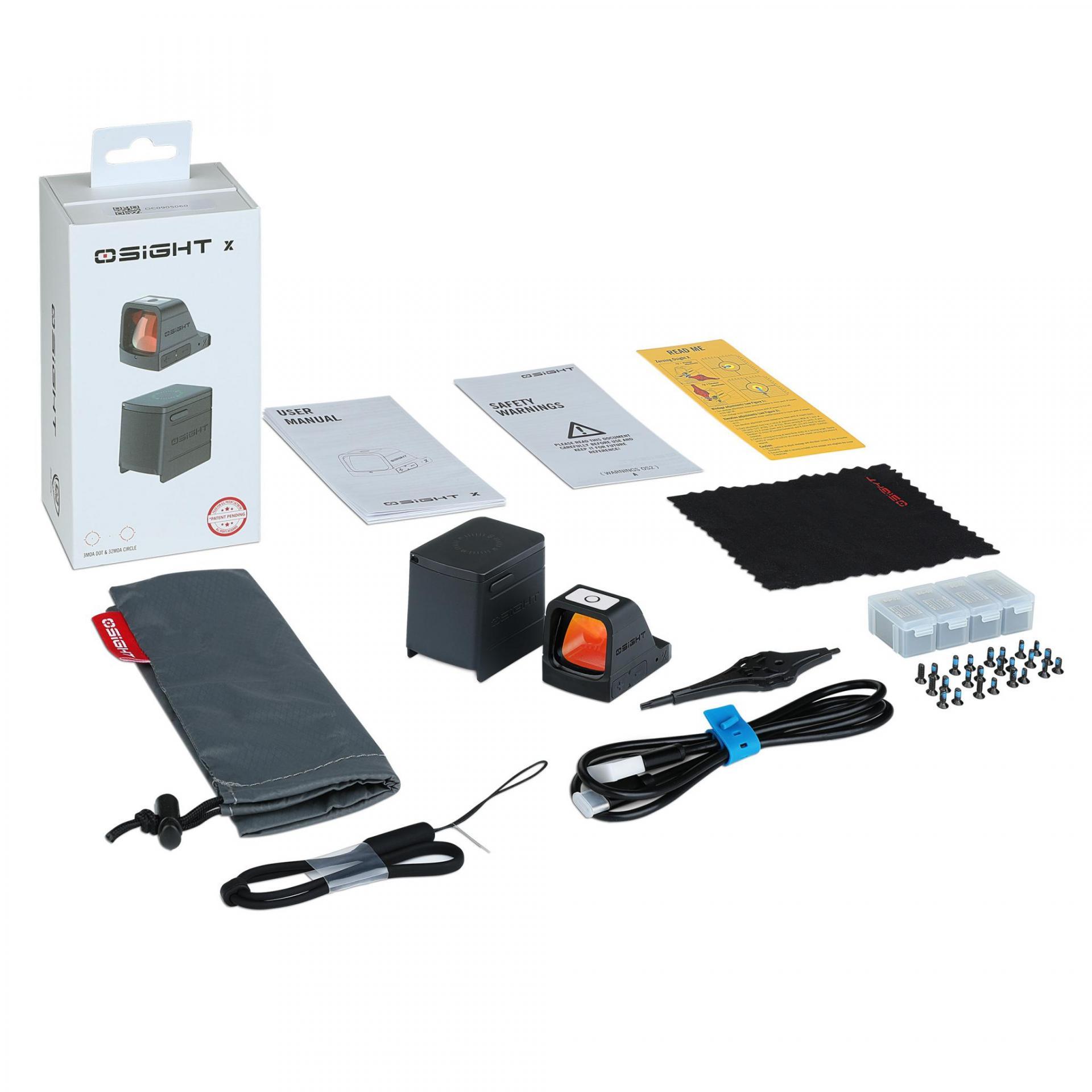

PACKAGE CONTENTS
- Optic × 1
- Charging Cover × 1
- Adjustment Tool × 1
- USB-C Charging Cable × 1
- Pouch × 1
- Osight X Screw Kit x 1
- Cleaning Cloth × 1
- User Manual × 1
