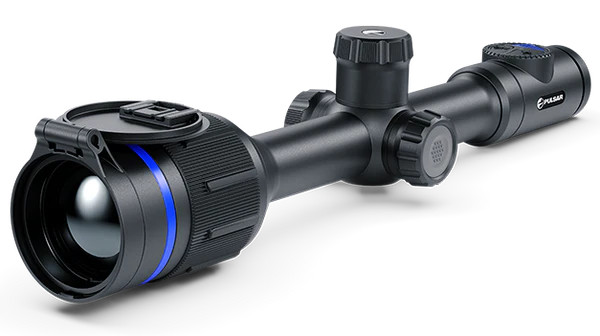

PULSAR THERMION 2 XQ50 PRO | 384 X 288 SENSOR 3X – 12X

Product Code:
20230726336
MPN:
20230726336
Thermal imaging sensor with NETD 25mK value ensures perfect detail recognition even in the most severe weather conditions when thermal contrast is low. The smallest temperature differences in observed objects can be clearly visible.

(No reviews yet) Write a Review
$4,599.00

SPECIFICATIONS

  • Sensor - 384x288 pix. @ 17 µm (NETD <25 mK)
  • Objective lens - F50 F/1.0
  • Magnification - 3x - 12x
  • Field of view (HxV), degrees / m@100m - 7.5/13.1
  • Detection range - 1800m
  • Sensor Type - uncooled
  • Resolution - 384x288
  • Pixel pitch - 17µm
  • NETD - <25mK
  • Frame rate - 50Hz

Optics

  • Objective lens - F50 F/1.0
  • Magnification - 3x - 12x
  • Field of view (HxV), degrees / m @ 100 m - 7.5/13.1
  • Eye relief - 50m

Display

  • Type - AMOLED
  • Resolution - 1024x768

Range Performance

  • Detection range - 1800m

Reticle

  • Click value, H/V, mm at 100 m - 13 – 3x, 6.5 – 6x, 3.25 – 12x
  • Click range, H/V, mm at 100 m - 2600/2600
  • Number of preloaded reticles - 10

Video Recorder

  • Video / photo resolution - 1024х768
  • Video / photo format - .mp4 / .jpg
  • Built-in memory - 16GB

Wi-Fi

  • Wireless Protocol - Wi-Fi
  • Wireless Standard - 802.11 b/g/n/ac
  • Frequency - 2.4 / 5 GHz

Environmental Characteristics

  • Degree of protection - IP code (IEC60529) IPX7
  • Operating temperature range - -25 – +50°С

Connections and Compatibilities

  • Max. recoil power on rifled weapon (Eo) - 6000 Joules
  • Shock resistance on the smooth-bore rifles - 12 caliber
  • Compatible mounts - Standard 30 mm rings
  • Supported Application - Stream Vision 2

Power Supply

  • Output voltage - 3.0v – 4.2v
  • Battery type - Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)
  • Capacity (mAh) - 2000 (external) + 3200 (external)* + 4900 (internal)
  • Operating time on battery pack (at t=22°C) - 10 hours
  • External power supply - 5v, 9v (USB Type-C Power Delivery)

Weight & Size

  • Body material - Metal
  • Dimensions (mm) - 412x78x83
  • Weight (kg) - 0.9
