FEATURES
Born from the demands of the world’s most elite operators, the AMG® 1-10x24 was conceived to meet a standard that didn’t exist, until now. Compact enough to run on carbines fully equipped with thermal attachments, lasers, red dots, and backup irons. Tough enough to survive what crushed everything else. Patented internals and structural innovations, every ounce engineered with purpose for those who’ve outgrown everything else.
Class Leading HD Optical System
- Stunning resolution and class-leading field of view combine to create our most advanced optical system.
Dual Zero Turrets
- Switch zeros for suppressed, unsuppressed, long- or short-range loads.
Toolless Turrets
- Fast, tool free zero with reliable return and micro adjustment.
Compact and Lightweight
- Just 8.4", fits short-barreled carbines and frees up the rail for attachments.
Integrated Throw Lever
- 120° throw for faster transitions, low profile to avoid snags.
APO (Apochromatic)
- Index-matched lenses correct colour across the entire visual spectrum.
XR™ Plus Lens Coatings
- Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Locking Fast Focus Diopter
- Locks tight to keep your reticle sharp.
Plasma Tech
- Cutting-edge coating application process provides unparalleled coating durability and performance.
Glass-Etched Reticle
- Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Aircraft Grade Aluminium
- Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
ArmorTek®
- Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil, and dirt.
Low-Glare Matte Black Anodize
- Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Locking Side Illumination
- Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels with off positions between each setting.
Argon Gas Purged
- Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Made in USA with US and Global Parts
- Engineered, Machined, and Assembled in the USA. Held to micron level tolerances.
Waterproof
- Designed to withstand harsh weather conditions.
Fogproof
- Designed to withstand a wide range of temperatures.
Shockproof
- Designed to withstand the highest levels of recoil and impact.

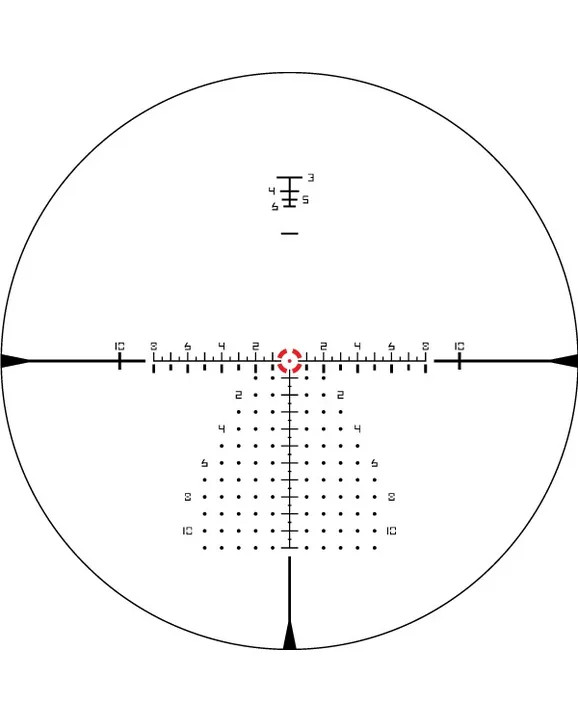

EBR-9 (MRAD)
Designed for use in close-quarters and long-range shooting, the EBR-9 reticle can be used to effectively determine ranges, holdovers, and windage corrections.

SPECIFICATIONS
- Magnification: 1-10x
- Objective Lens Diameter: 24 mm
- Focal Plane: First Focal Plane
- Reticle: EBR-9 (MRAD)
- Eye Relief: 3.3"
- Field of View: 116.0' - 12.0' @ 100 yds.
- Turret Style: Dual Zero - Capped
- Tube Size: 34mm
- Adjustment Graduation: .1 MRAD
- Travel Per Rotation: 10 MRAD
- Max Elevation Adjustment: 30 MRAD
- Max Windage Adjustment: 30 MRAD
- Parallax Setting: 250 yds
- Length: 8.4"
- Weight: 18.8 oz.
