VORTEX RANGER HD 3000 10x42 LRF BINOCULAR

FEATURES

Ranging Modes

• Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
• Line of Sight (LOS): Displays the actual line of sight range.
• SCAN Feature: Displays continuous distance readings while panning across a landscape.

Target Modes

• Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
• First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
• Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.

HD Optical System

• Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.

Red OLED Display

• Optimized for low light.

Fully Multi-Coated Lenses

• Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.

Nitrogen Gas Purged

• Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.

ArmorTek®

• Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Ranging Format

• Range in yards or meters.

Rubber Armor

• Provides a secure, non-slip grip, and a durable external protection.

Waterproof

• Designed to withstand harsh weather conditions.

Fogproof

• Designed to withstand a wide range of temperatures.

Shockproof

• Designed to withstand the highest levels of impact.

Tripod Adaptable

• Compatible with a tripod adapter, allowing use on a tripod or car window mount.

SPECIFICATIONS

• Magnification: 10x
• Objective Lens Diameter: 42 mm
• Eye Relief: 17.0mm
• Angular Field of View: 6.4º
• Close Focus: 6.0'
• Interpupillary Distance: 55mm - 74mm
• Linear Field of View: 335' @ 1000 yds.
• Range Reflective (yards): Up to 3000 yds.
• Range Tree (yards): Up to 1800 yds.
• Range Deer (yards): Up to 1500 yds.
• Min Range: 6 yds.
• Height: 6.7"
• Width: 5.1"
• Weight: 32.4 oz.

RETICLE

HCD CORRECTED SHOOT-TO RANGE
The Ranger® HD 3000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.

Display details for Ranger HD 3000 10x42

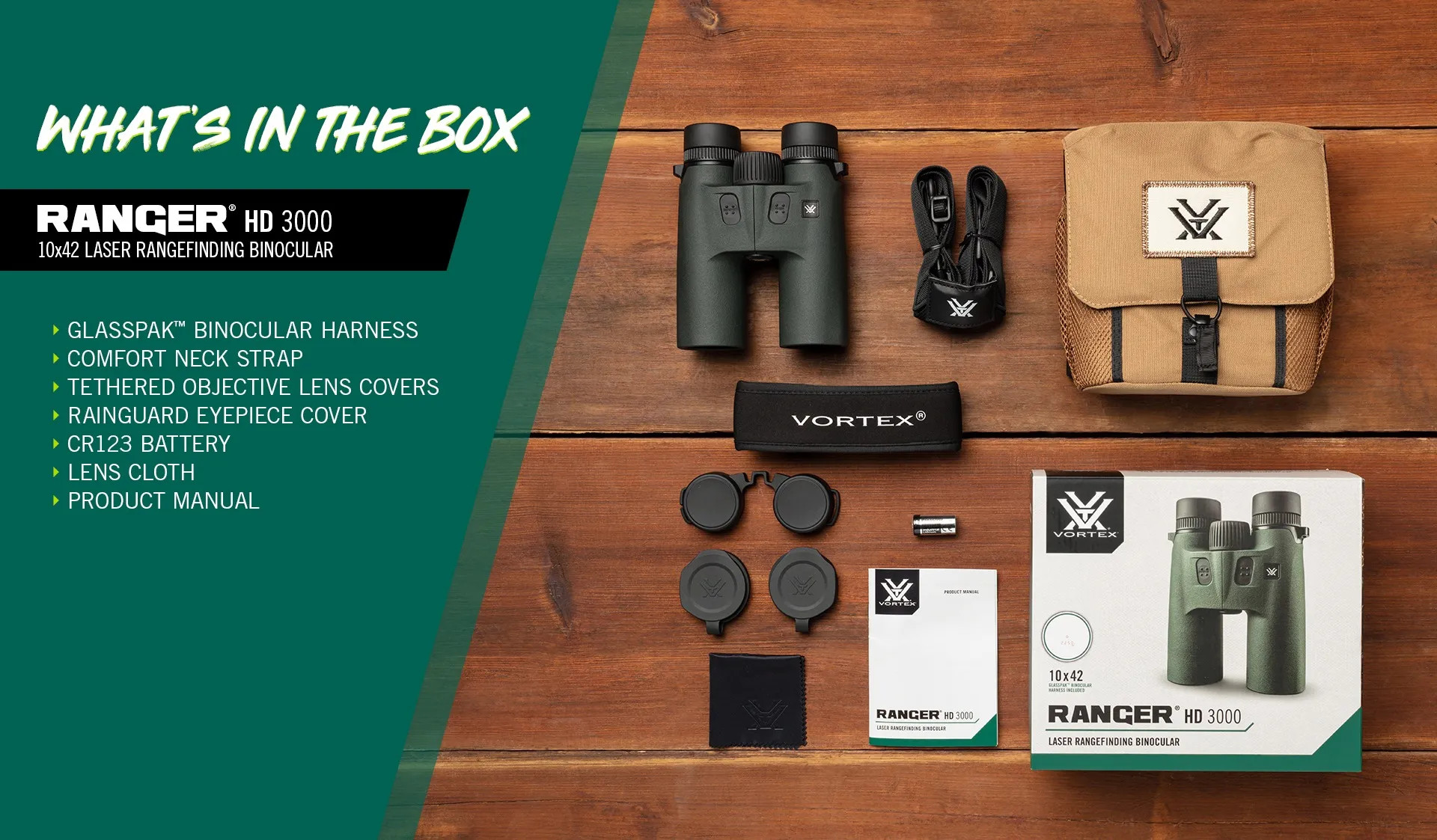

WHAT'S IN THE BOX

• GlassPak™ Binocular Harness
• Comfort Neck Strap
• Lens Cloth
• Tethered Objective Lens Covers
• Rainguard Eyepiece Cover
• CR123 Battery
