FEATURES
Reliability in everyday hunting. Even under toughest conditions
ZEISS Conquest V4 Riflescopes
The Conquest V4 riflescopes are for hunters and shooters whose lifestyle and adventures involve traditional and long-range hunting, as well as shooting and long-range shooting. They were designed as a lightweight, high-performance product line for various demanding hunting and shooting applications. They are, by any standard, 'best-in-class'.
The Conquest V4 family is based on a 4x zoom ratio, incorporates a 30 mm main tube, and consists of the: 3-12x44, 3-12x56, 4-16x44, 4-16x50, and 6-24x50 models. Each model delivers 90% to-the-eye light transmission, offers .25 MOA click values, capped windage turret or external locking windage turret, a large range of total elevation and windag travel, and various traditional and smart second focal plane reticles.
ZEISS Conquest V4 models are backed by the ZEISS Limited Lifetime Transferable Warranty AND Five-Year No-Fault Policy.

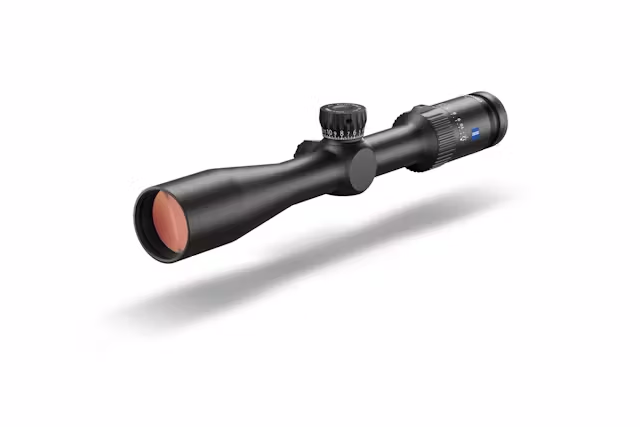

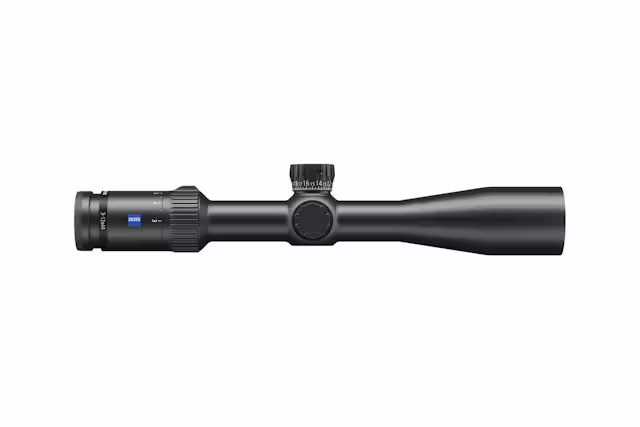

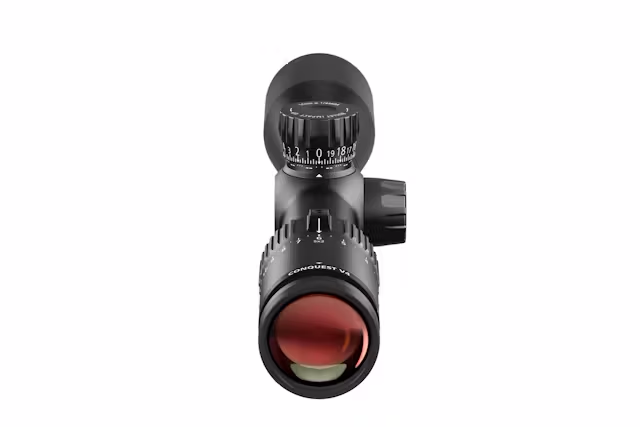

ZEISS Conquest V4 3-12x44
The 3-12x44 model represents the traditional hunting scope that is lightweight, very compact in size, and with a highly useful magnification range. Whether hunting in timber, over open fields, or on the plains, this version of the Conquest V4 is an ideal fit on any traditional hunting rifle platforms. This model is available with the ZEISS #20 plex reticle. It comes standard with capped elevation and windage turrets. This scope yields a super bright image. It is sure to be an all-time favourite for hunting.
- Predator / Varmint
- Plains Game
- Big Game
4x Zoom Range
The 4x zoom range allows hunters to perfectly recognize details and offers an excellent overall view for a safe and accurate shot.
A Clear View, Whatever the Weather
There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec®. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
Stable and Shot-Proof
The ZEISS V8, ZEISS Victory HT, ZEISS Conquest V6, and ZEISS Conquest V4 riflescopes are all ideally suited for use with "clip-on" attachments.
90% Light Transmission
Higher definition glass produces 90% to-the-eye light transmission, great low-light performance and excellent target resolution across the entire magnification range.
ZEISS T* Coating
ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
SPECIFICATIONS
Performance
- Magnification: 3 – 12 x
- Effective Lens Diameter: 44.9 – 50 mm
- Light Transmission: 90%
- Exit Pupil Diameter: 7.5 – 2.1 mm
- Twilight Factor: 16.4 – 34.6
- Field of View at 100 m (yds): 5.8 – 1.5 m (19 – 4.8 ft)
- Objective Viewing Angle: 3.6° – 0.9°
- Diopter Adjustment Range: + 2.0 | − 3.0 dpt
- Eye Relief: 90 mm (3.54 ")
- Parallax Setting: 91.4 m (100 yds)
- Centre Tube Diameter: 30 mm
- Eyepiece Tube Diameter: 44 mm
- Objective Tube Diameter: 50 mm
Features
- LotuTec | Nitrogen Filled: + | +
- Water Resistance: 400 mbar
Physical
- Operating Temperature: − 25°C | + 50°C (− 13°F | + 122°F)
- Length: 368 mm (14.5 ")
- Weight (without inner rail): 638 g (22.5 oz)
- Weight (with inner rail): -

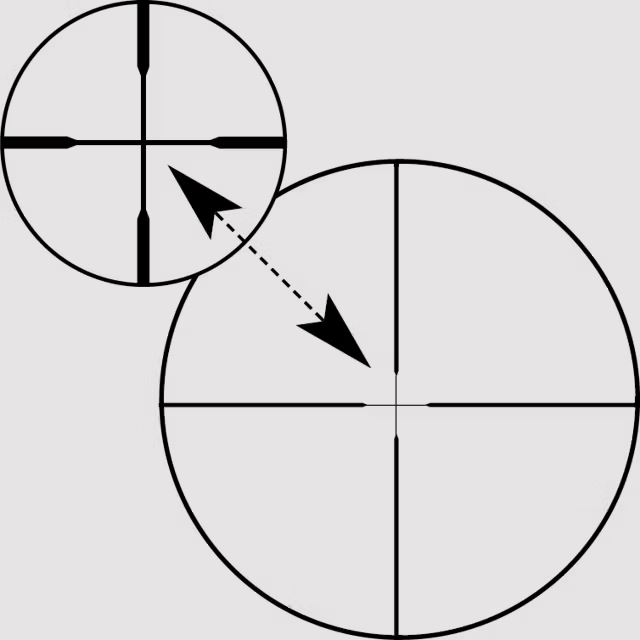

Reticle
The very fine reticle 20 is located in the second image plane. During daytime hunting, it enables you to shoulder your rifle and aim extremely precisely, even at long distances. The transition from the bars to the fine lines in the centre is arrow-shaped in the reticle 20. This gives you the ability to aim especially precisely at small targets.
