FEATURES

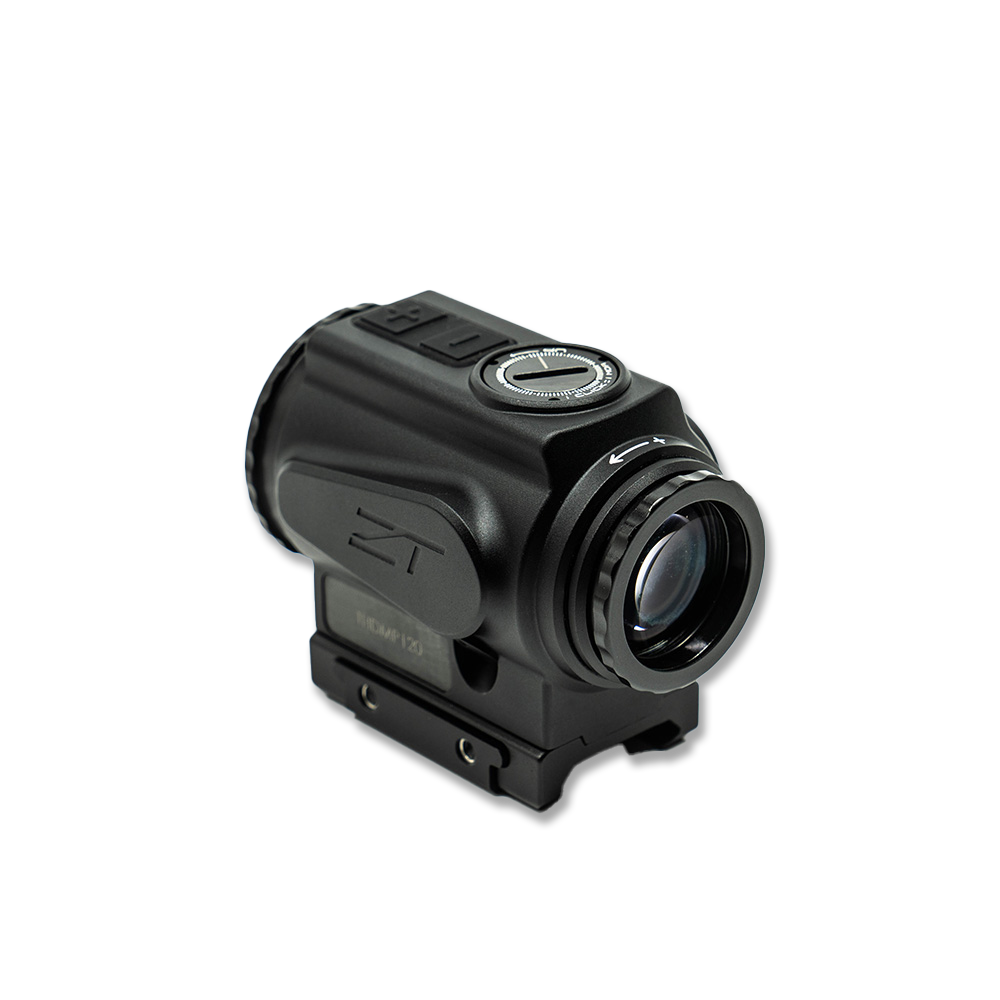

Introducing the 1x MICRO Prism Scope, a versatile and robust optic designed for quick and clear sight acquisition across various shooting applications. Featuring four variable mounting height options, this micro prism is CNC cut from a solid billet of 6061 T6 aluminium. Its expansive eye relief and laser etched, illuminated reticle enhance both versatility and precision, making it an ideal choice for recreation, hunting, and competitive shooting. With the ability to operate with both eyes open, the Thrive HD Micro Prism allows the user to maintain high situational awareness, crucial for dynamic shooting scenarios.
- Magnification: 1x
- Objective Lens Diameter: 20mm
- Tenebraex compatibility (26FCV-010BK1 & 28MMFC-FCV)

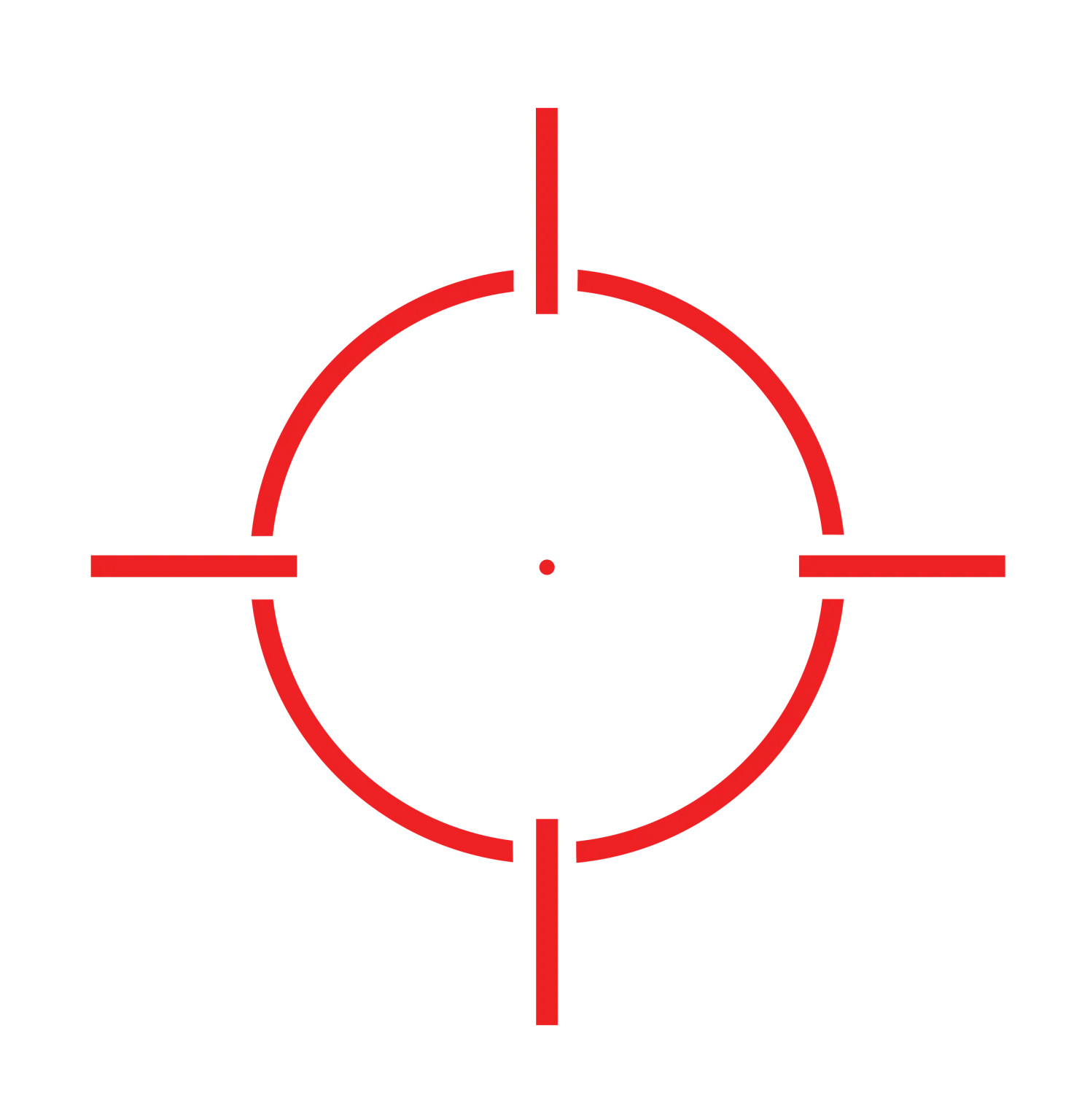

- Reticle: ZT Prism Reticle, etched
- Brightness Settings: 13 Adjustable, including 3 NV
- Battery Life: Up to 5000 Hours
- Turret Index Value: 1 MOA / Click
- Windage / Elevation Adjustment Range: 90 MOA
- Eye Relief: 90mm
- Field of View @ 100m = 23m @ 100y = 70ft
- Lens Coating: Multi-Coated
- Operational Temperature: -20°c to +70°c
- Weight: Approx. 252 Grams (1.6” riser and battery Installed)
The 1x MICRO Prism Scope is a compact solution combining the advantages of both red dot sights and traditional riflescopes. It features a 20mm objective lens and 13 brightness settings, including three for night vision, ensuring optimal visibility in most conditions. This optic is shockproof, waterproof, and fog-proof, equipped with a side-loading CR2032 battery offering up to 5000 hours of operational life. The ocular and objective feature Tenebraex adapter geometry to facilitate 26FCV-010BK1 and 28MMFC-FCV Tactical Tough flip up lens covers, offering ultimate protection of the multi coated lenses. The integrated motion sensor with auto sleep and auto-on functionality conserves battery while keeping the scope ready for action. The fixed 1x magnification facilitates quick target acquisition, nearly as fast as red dot sights, while providing a refined reticle to enable precise shooting at extended ranges.
Key Features
- Variable Mounting Options: Includes four, user configurable mounting heights, providing exceptional versatility across different platforms.
- Robust Construction: CNC cut 6061 T6 aluminium body ensures durability and impact resistance, maintaining functionality under stress.
- Etched Reticle: Offers precise aiming points with an etched ZT Prism Reticle that remains visible without illumination, perfect for users with astigmatism and daytime use.
- Expansive Eye Relief: Provides comfort and ease of use with both eyes open, allowing for rapid target engagement.
- Enhanced Optical Clarity: Multi-coated lenses deliver a clear field of view; 76.5m at 100m for broad situational awareness.
Advantages Over Other Optics
1x Prism Scopes bridge the gap between red dot simplicity and riflescope precision. The MICRO Prism sight’s laser etched reticle is superior for those with astigmatism, offering a clearer and more consistent aiming point than projected reticles. Its rugged construction and internal prisms provide a compact, durable optic ideal for close range out to moderate distance engagements without the need for adjustment.
SPECIFICATIONS
- Model Number/SKU: THDMP120
- Magnification: 1x
- Objective Lens Diameter: 20mm
- Parallax Adjustment: Fixed (100m)

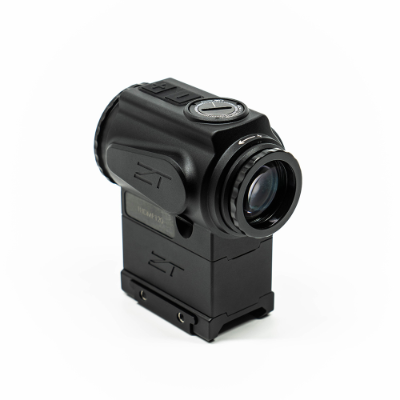

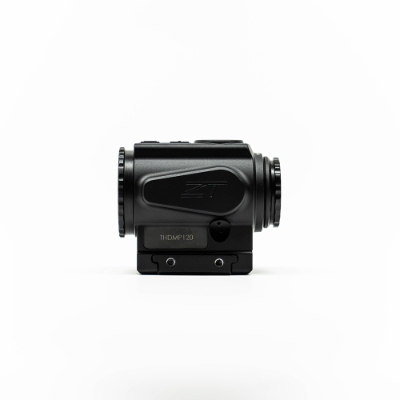

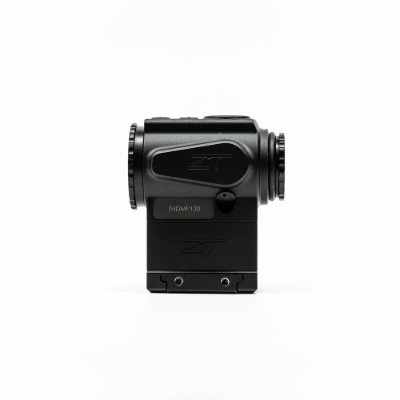

- Mounting Heights: 1.1”, 1.4”, 1.6” & 1.93”
- Eye Relief: 90mm
- Field of View
- (ft @ 100y/ Metres @ 100m): 70ft / 23m
- Elevation Travel: 90 MOA
- Lens Coating: Fully Multi Coated
- Length: 66.85mm
- Weight: 214g (1.1” mount height inc. battery)
- Zero Stop: Yes
- Illumination: 13 setting (inc. 3 NV) + Auto on/ off
- Available Reticle: ZT Prism Dot Reticle
- Waterproof: Yes – IPX7
- Argon Purged: Yes
- Construction: 6061 T6

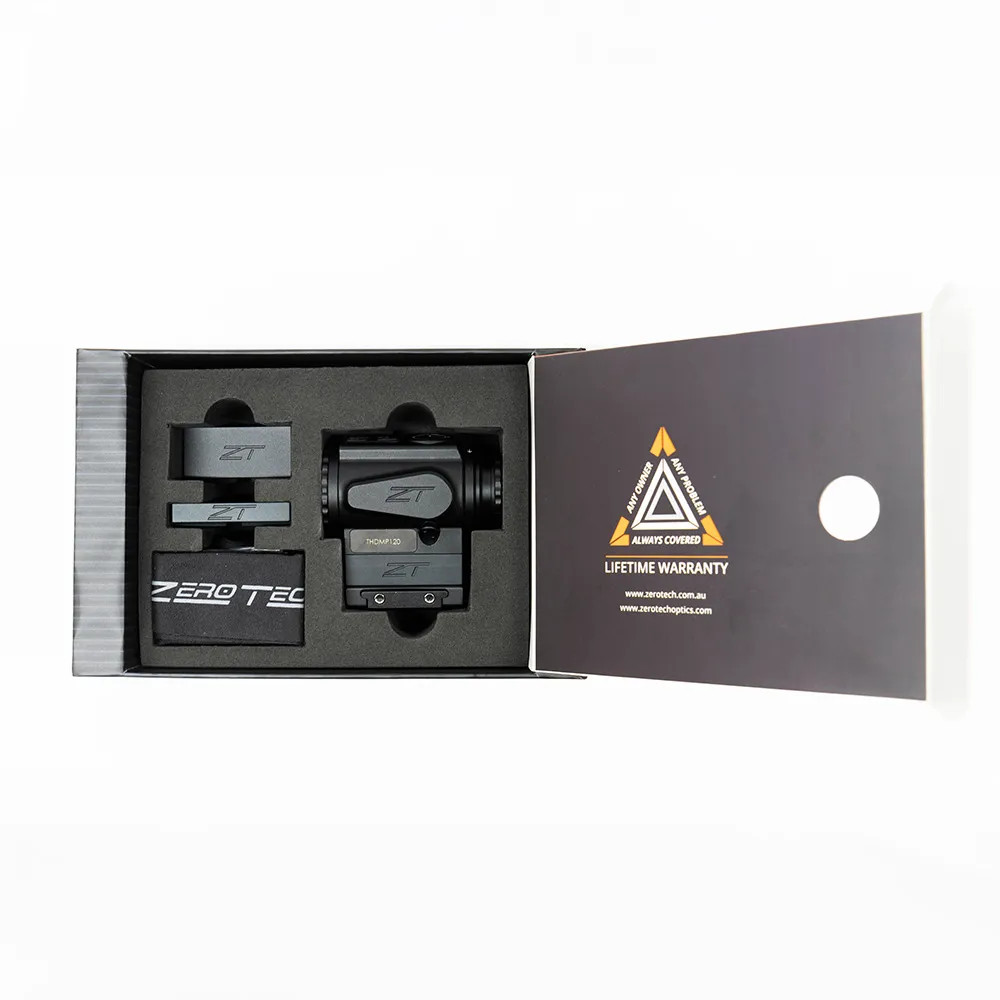

In The Box
- 1x MICRO Prism Scope
- Three Variable Height Mounts
- CR2032 Battery
- Neoprene Protective Scope Cover
- High-Quality Microfibre Cleaning Cloth
- Instruction Manual
