HIKMICRO RAPTOR | RH50LN

Product Code:
202302131002
MPN:
RH50LN

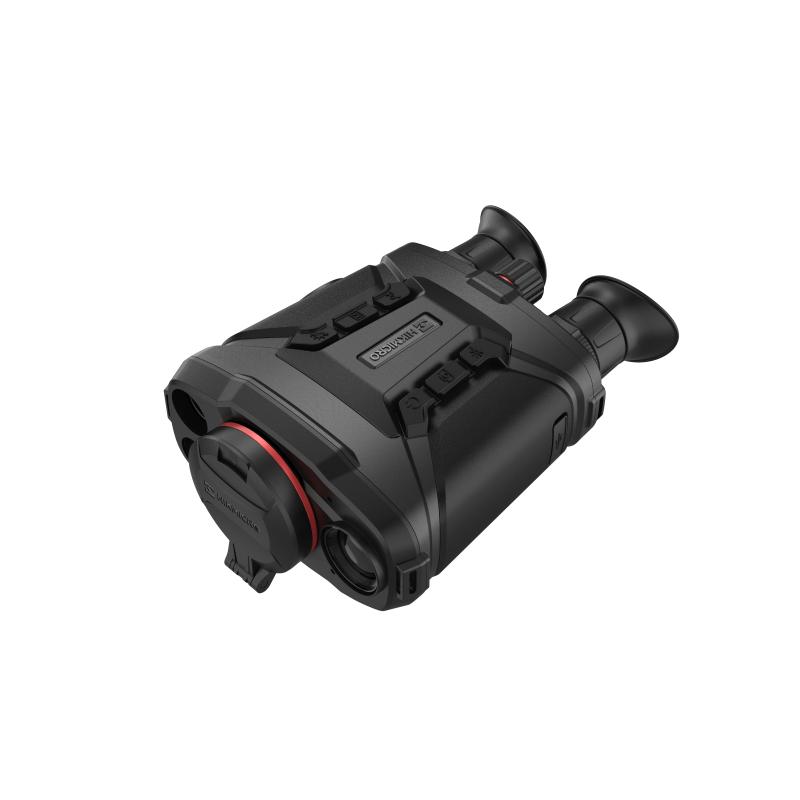

The HikMicro Raptor RH50LN Thermal Binoculars feature an integrated thermal camera, digital day and night camera, as well as a laser rangefinder providing unprecedented observation capability in a compact package.

(No reviews yet) Write a Review

THERMAL MODULE SPECIFICATIONS



IMAGE SENSOR                      VOx Uncooled Focal Plane Arrays
MAXIMUM RESOLUTION

384 × 288

FRAME RATE   25 Hz
PIXEL INTERVAL   12 μm
NETD   <20mk (@25°C,F#=1.0)
LENS (FOCAL LENGTH)

50 mm

DETECTION RANGE   2600 m
FOCUS MODE   Manual
FIELD OF VIEW (H X V) DEGREES / M @ 100M   5.3° × 4.0° (H × V)/ 9.3 m × 7.0 m
MINIMUM FOCUSING DISTANCE   5 m
APERTURE   F 0.9
MAGNIFICATION   5.7 ×
DIGITAL ZOOM   1 ×, 2 ×, 4 ×, 8 ×, 16 ×



OPTICAL MODULE SPECIFICATIONS



IMAGE SENSOR                       1.88'' Progressive Scan CMOS
MAXIMUM RESOLUTION   2560 x 1440
MINIMUM RESOLUTION   0.001 lux @ (F1.0 , AGC On)
FOCAL LENGTH   31 mm
IMAGE ENHANCEMENT   YES
APERTURE   F 1.2
IR ILLUMINATOR WAVELENGTH   940nm
VIEWING RANGE AT NIGHT   350 m
SMART IT   YES



IMAGE DISPLAY SPECIFICATIONS

DISPLAY                     0.39 inch, OLED, 1024 ×768
FFC (FLAT FIELD CORRECTION) MODE   Auto, Manual, External Correction
IMAGE MODE   Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion
DIOPTER (RANGE)   -5 D to +3 D
OPTICAL MODE   Day、Night、Auto、Defog
IMAGE PRO   YES



GENERAL SPECIFICATIONS



PROTECTION LEVEL                          IP67
WEIGHT   1120 g
DIMENSION   217.5 mm × 155.0 mm × 87.5 mm
ACCESSORY   Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor,Carrying Case
WORKING TEMPERATURE   -30 °C to 55 °C
WORKING HUMIDITY   <90%
STORAGE TEMPERATURE   -40 °C to 70 °C
EYE-RELIEF   15 mm
INTERPUPILLARY ADJUSTMENT RANGE   60 mm to 70 mm
MOUNTING ADAPTER   1/4“-20-UN



SYSTEM SPECIFICATIONS



BUILT-IN MEMORY                    64 GB
RECORD VIDEO   MP4 , 1600 × 1200
CAPTURE SNAPSHOT   JPEG , 1600 × 1200
HOTSPOT   Yes
GPS

YES

DIGITAL MAGNETIC COMPASS

YES

STANDBY MODE

YES

PIP

YES

HOT TRACK

YES

AUDIO RECORDING

YES

PROXIMITY SENSOR

YES

MULTIPLE LANGUAGE

YES

LOCAL ALBUM

YES

SUPPORTED APPLICATION   HIKMICRO Sight



POWER SUPPLY SPECIFICATIONS



BATTERY TYPE             Replaceable and Rechargeable Li-ion Battery
BATTERY OPERATING TIME   8 hours continuous running with hotspot function off (@25°C)
TYPE-C POWER SUPPLY   Yes



LASER RANGE FINDER SPECIFICATIONS



SAFETY CLASS FOR LASER             Class 1
WAVELENGTH   905 nm
MAXIMUM MEASURING DISTANCE   1000 m
MEASUREMENT ACCURACY   ± 1 m
