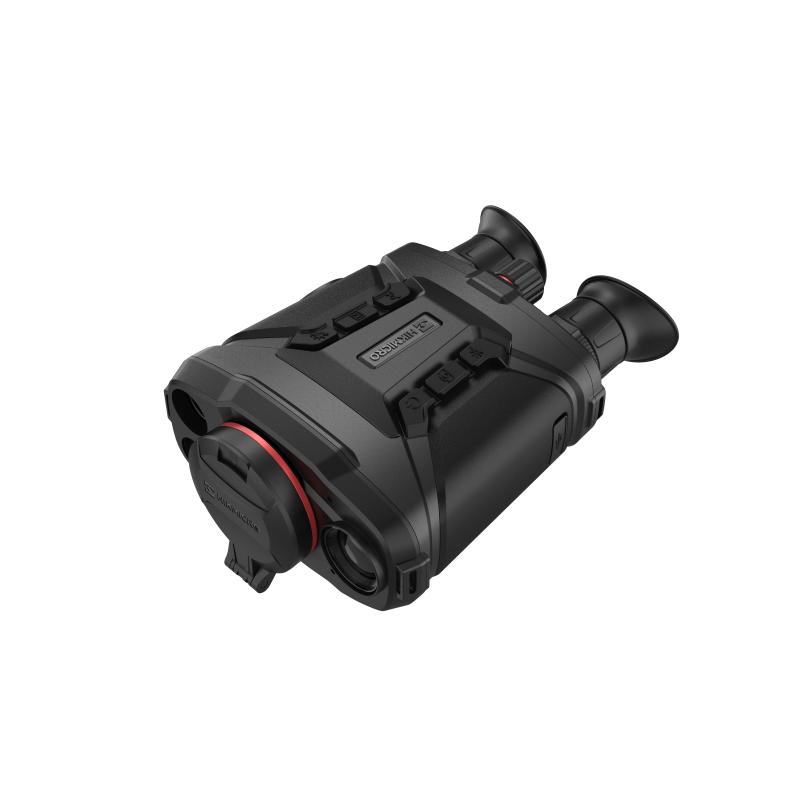

HIKMICRO RAPTOR | RQ50L

Product Code:
20230213946
MPN:
RQ50L
The HikMicro Raptor RH50L Thermal Binoculars feature an integrated thermal camera, digital day and night camera, as well as a laser rangefinder providing unprecedented observation capability in a compact package.

(No reviews yet) Write a Review

THERMAL MODULE SPECIFICATIONS

IMAGE SENSOR

             VOx Uncooled Focal Plane Arrays
MAXIMUM RESOLUTION   640 × 512
FRAME RATE   25 Hz
PIXEL INTERVAL   12 μm
NETD   <20mk (@25°C,F#=1.0)
LENS (FOCAL LENGTH)   50 mm
DETECTION RANGE   2600 m
FOCUS MODE   Manual
FIELD OF VIEW (H X V) DEGREES / M @ 100M   8.8 ° × 7.0 ° (H × V)/ 15.4 m × 12.2 m
MINIMUM FOCUSING DISTANCE   5 m
APERTURE   F 0.9
MAGNIFICATION   3.4 ×
DIGITAL ZOOM   1 ×, 2 ×, 4 ×, 8 ×, 16 ×



OPTICAL MODULE SPECIFICATIONS

IMAGE SENSOR

             1.88'' Progressive Scan CMOS
MAXIMUM RESOLUTION   2560 x 1440
MINIMUM RESOLUTION   0.001 lux @ (F1.0 , AGC On)
FOCAL LENGTH   31 mm
IMAGE ENHANCEMENT   YES
APERTURE   F 1.2
IR ILLUMINATOR WAVELENGTH   850nm
VIEWING RANGE AT NIGHT   400 m
SMART IT   YES



IMAGE DISPLAY SPECIFICATIONS

DISPLAY

                           0.39 inch, OLED, 1024 ×768
FFC (FLAT FIELD CORRECTION) MODE   Auto, Manual, External Correction
IMAGE MODE   Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion
DIOPTER (RANGE)   -5 D to +3 D
OPTICAL MODE   Day、Night、Auto、Defog
IMAGE PRO   YES



GENERAL SPECIFICATIONS

PROTECTION LEVEL                  IP67
WEIGHT   1120 g
DIMENSION   217.5 mm × 155.0 mm × 87.5 mm
ACCESSORY   Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor, Carrying Case
WORKING TEMPERATURE   -30 °C to 55 °C
WORKING HUMIDITY   <90%
STORAGE TEMPERATURE   -40 °C to 70 °C
EYE-RELIEF   15 mm
INTERPUPILLARY ADJUSTMENT RANGE   60 mm to 70 mm
MOUNTING ADAPTER   1/4“-20-UNC



SYSTEM SPECIFICATIONS

BUILT-IN MEMORY

                          64 GB
RECORD VIDEO   MP4 , 1600 × 1200
CAPTURE SNAPSHOT   JPEG , 1600 × 1200
HOTSPOT   Yes
GPS   Yes
DIGITAL MAGNETIC COMPASS   Yes
STANDBY MODE   Yes
PIP   Yes
HOT TRACK   Yes
AUDIO RECORDING   Yes
PROXIMITY SENSOR   Yes
MULTIPLE LANGUAGE   Yes
LOCAL ALBUM   Yes
SUPPORTED APPLICATION   HIKMICRO Sight



POWER SUPPLY SPECIFICATIONS

BATTERY TYPE

                Replaceable and Rechargeable Li-ion Battery
BATTERY OPERATING TIME   8 hours continuous running with hotspot function off (@25°C)
TYPE-C POWER SUPPLY   Yes



LASER RANGE FINDER SPECIFICATIONS

SAFETY CLASS FOR LASER                 Class 1
WAVELENGTH   905 nm
MAXIMUM MEASURING DISTANCE   1000 m
MEASUREMENT ACCURACY   ± 1 m
