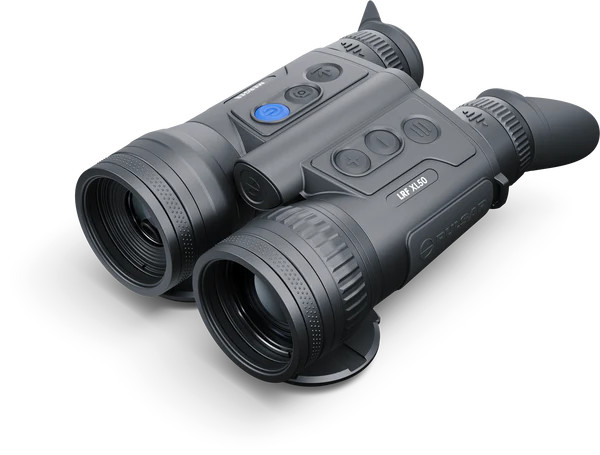

PULSAR MERGER XL50 LRF THERMAL BINOCULAR | 1024 X 768 SENSOR LRF RANGE 1000M 2.5X - 20X

Product Code:
20230727329
MPN:
20230727329
The highest versatility: wide field of view for search, detailed imaging at any magnification for confident object identification. The Merger LRF XL50 offers the next level of thermal imaging experience.

(No reviews yet) Write a Review

SPECIFICATIONS

  • Sensor - HD 1024x768 @ 12 µm (NETD <40 mK)
  • Magnification - x 2.5 – 20 (x8 zoom)
  • Detection range - 2300 m
  • Sensor Type - uncooled
  • Resolution - 1024x768pixels
  • Pixel pitch - 12 µm
  • NETD - <40 mK
  • Frame rate - 50 Hz

Optics

  • Objective lens - F50 / 1.0
  • Magnification - 2.5 – 20 x
  • Field of view (HxV) - degrees / 14x10.5 / 24.6x18.5 m @ 100 m
  • Interpapillary distance adjustment - 62 – 74 mm
  • Eye relief - 15 mm

Display

  • Type - AMOLED HD
  • Resolution - 1024x768pixels

Range Performance

  • Detection range - 2300m

Laser Rangefinder

  • Safety class for laser equipment according to IEC 60825-1:2014 - 1
  • Wavelength - 905 nm
  • Max. measuring range - 1000 m
  • Measurement accuracy - ± 1 m

Video Recorder

  • Video / photo resolution - 1024x768 pixel
  • Video / photo format - .mp4 / .jpg
  • Built-in memory - 64 GB

Wi-Fi

  • Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
  • Frequency - 2.4 / 5 GHz

Environmental Characteristics

  • Degree of protection - IPХ7 (waterproof)IP code (IEC60529)
  • Operating temperature range - -25 – +50 °С

Connections and Compatibilities

  • Mount - type 1/4" socket
  • Supported Application Stream Vision 2

Power Supply

  • Output voltage - 3.7 V
  • Battery type - Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
  • Capacity - mAh 3200 (external) + 4000 (internal)
  • Operating time on battery pack (at t=22°C) - 8 hours
  • External power supply - 5V, 9V (USB Type-C Power Delivery)

Weight & Size

  • Body material - Magnesium alloy
  • Dimensions (mm) - 197x140x72
  • Weight (kg) - 0.95 (batteries included)
