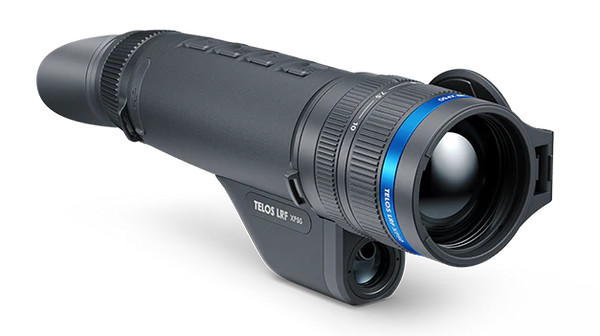

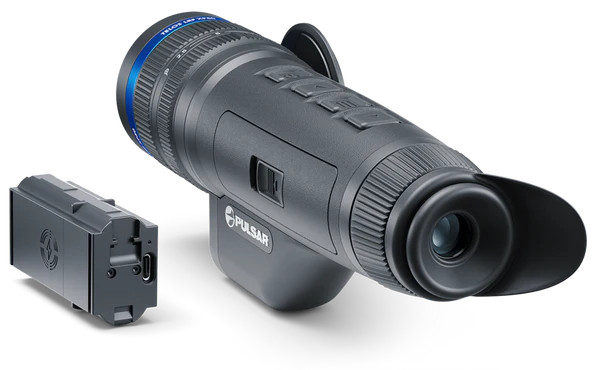

PULSAR TELOS XP50 THERMAL MONOCULAR | 640 X 480 SENSOR 2.5X - 20X

Product Code:
20230727321
MPN:
20230727321
Thermal imaging is no exception. Over time, users’ choices and preferences change. In addition, with experience, users evolved their own requirements for the device capabilities and operation.

(No reviews yet) Write a Review

Specifications



Sensor

  • Objective lens - F50 / 1.0
  • Magnification - x2.5 – 10 (x4 digital zoom)
  • Field of view (HxV), degrees / m@100m - 12.4x9.3 / 21.8x16.3
  • Detection range - 1800m
  • Sensor type - Uncooled
  • Resolution - 640x480, 17 µm (NETD <18 mK)
  • Frame rate - 50Hz


Optics



  • Objective lens - F50 / 1.0
  • Magnification, x2.5 – 10 (x4 digital zoom)
  • Field of view (HxV), degrees / m @ 100 m - 12.4x9.3 / 21.8x16.3
  • Eye relief - 14mm
  • Display Type - AMOLED HD
  • Resolution - 1024x768
  • Detection range - 1800m


Video Recorder



  • Video / photo resolution - 1024x768
  • Video / photo format - .mp4 / .jpg
  • Built-in memory, 64GB


Wi-Fi



  • Wireless Protocol - Wi-Fi
  • Wireless Standard - IEEE 802.11 b/g/n/ac (WPA)
  • Frequency, 2.4 / 5GHz


Environmental Characteristics



  • Degree of protection - IP code (IEC60529)
  • IPХ7 (waterproof)
  • Operating temperature range - -25 - +40°С


Connections and Compatibilities



  • Mount, type - 1/4"
  • Supported Application - Stream Vision 2


Power Supply



  • Output voltage - 3.0 - 4.2V
  • Battery type - LPS 7i Li-Ion Battery Pack
  • Capacity - 6400mAh
  • Operating time on battery pack (at t=22°C) - 8.5 hours
  • External power supply - 5V, 9V (USB Type-C Power Delivery)


Weight & Size



  • Body material - rubber armoured reinforced plastic
  • Dimensions (mm) - 238x72x90
  • Weight (kgs) - 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
