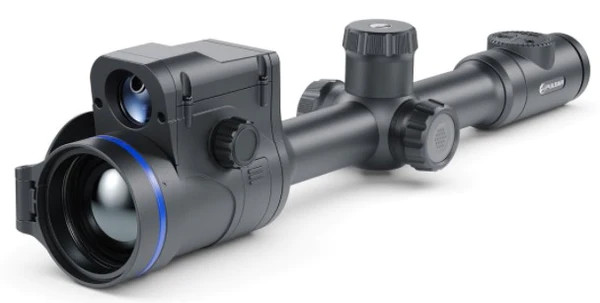

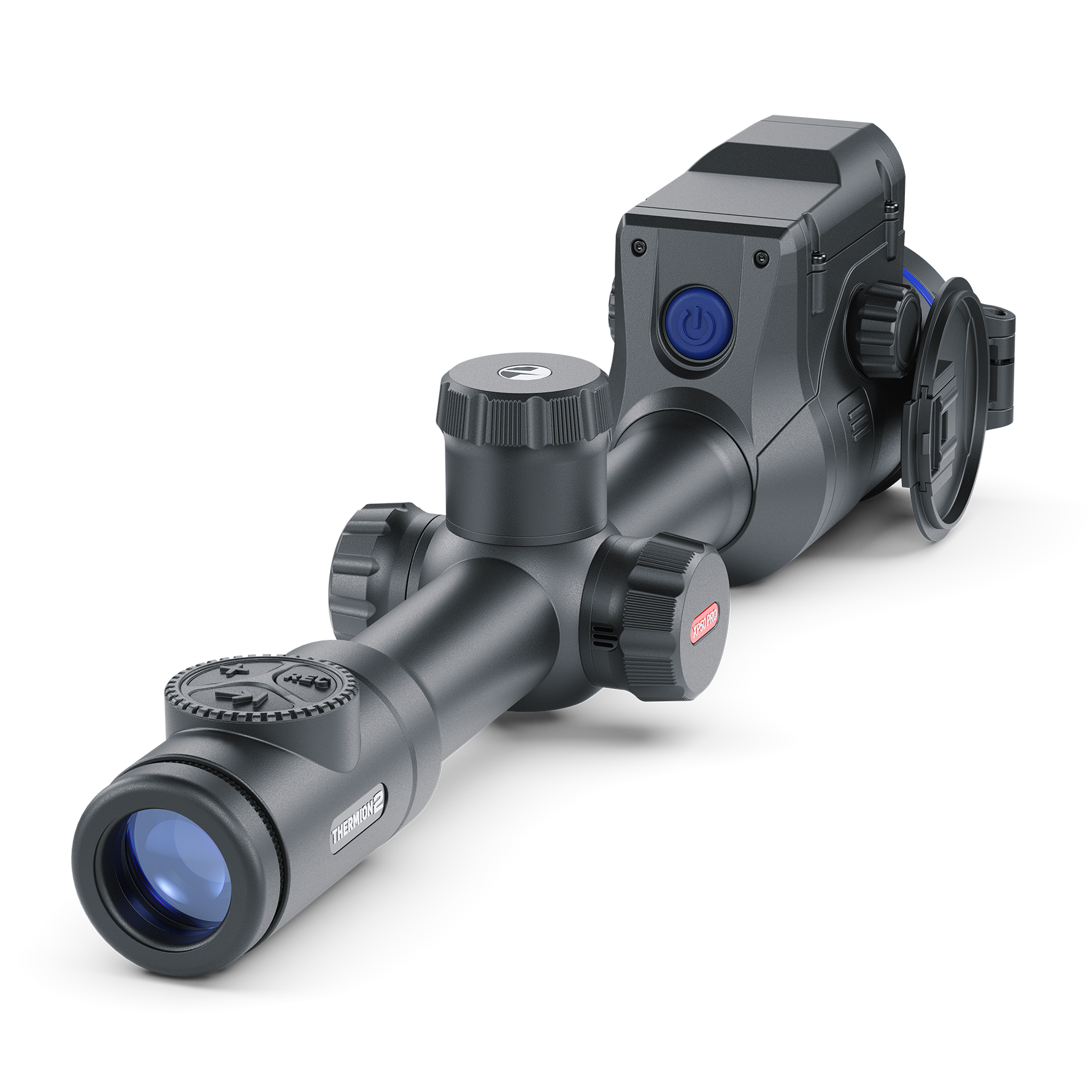

PULSAR THERMION 2 PRO XP50 LRF | 640 X 480 SENSOR LRF RANGE 1000M 2X - 16X

Product Code:
202211251547
MPN:
202211251547
The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 meters – the Thermion 2 LRF XP50 Pro provides the hunter with an accurate sense of distance.
(No reviews yet) Write a Review
MSRP: $7,900.00
$7,899.00
(You save $1.00 )

SPECIFICATIONS


  • Main Sensor - 640x480 @ 17 µm (NETD <25 mK)
  • Objective lens - F50/1.0
  • Magnification - 2x - 16x
  • Field of view (HxV) - 12.4x9.3 / 21.8x16.3 degrees / m@100m
  • Detection range - 1800 m
  • Sensor Type - uncooled
  • Frame rate - 50 Hz
  • Eye relief - 50 mm
  • Display Type - AMOLED
  • Resolution, pixels - 1024x768


Laser Rangefinder

  • Safety class for laser equipment according to IEC 60825-1:2014 - 1
  • Wavelength - 905 nm
  • Max. measuring range - 800 m
  • Measurement accuracy - ± 1m

Reticle

  • Click value - H/V, mm at 100 m 21 / 21 (on minimum magnification)
  • Click range - H/V, mm at 100 m 4200 / 4200
  • Number of preloaded reticles - 10+
  • Video / photo resolution - 1024x768 pixel
  • Video / photo format - .mp4 / .jpg
  • Built-in memory - 16 GB

Wireless Protocol

  • Wi-Fi - Wireless Standard IEEE 802.11 b/g/n/ac
  • Frequency - 2.4 / 5 GHz
  • Bluetooth Wireless Protocol - BLE 4.2
  • Wireless Standard - IEEE 802.15.1

Degree of protection

  • IPХ7 (waterproof) - IP code (IEC60529)
  • Operating temperature range - -25 – +50°С

Connections and Compatabilities

  • Max. recoil power on rifled weapon (Eo) - 6000 Joules
  • Shock resistance on the smooth-bore rifles, 12 caliber
  • Mounting brackets on weapon - Standard 30 mm rings
  • Remote control - Pulsar BT (optional)
  • Supported Application - Stream Vision 2

Power Supply

  • Output voltage - 3.0 – 4.2 V
  • Battery type - Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
  • Capacity - 2000 (external) + 4900 (internal) mAh
  • Operating time on battery pack (at t=22°C) - 10 hours
  • External power supply - V USB type С (5V)

Material and Dimensions

  • Body material - Aluminum alloy
  • Dimensions (mm) - 420x78,5x94,5
  • Weight (kgs) - 0.97
