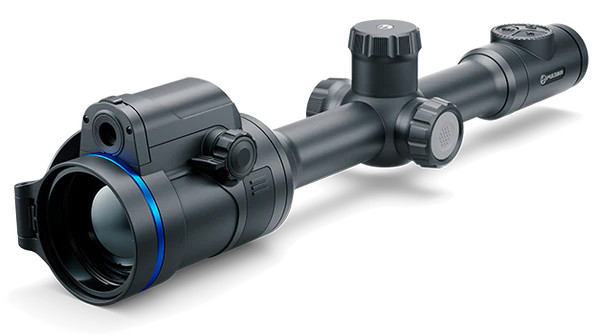

PULSAR THERMION DUO DXP55 MULTI | 640 X 480 SENSOR 2X - 16X

Product Code:
20230727222
MPN:
20230727222
The Thermion Duo DXP opens a new page in the history of Pulsar hunting optics. This is the first commercial riflescope to combine the effectiveness of thermal imaging detection at any time of day with the comfort of full-colour daytime observation.

(No reviews yet) Write a Review
MSRP: $7,700.00
$7,399.00
(You save $301.00 )

Specifications


  • Sensor  - 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital)
  • Objective lens - F50/1.0 (thermal) | F35/4.34 (digital)
  • Magnification, 2x – 16x (thermal) | 4x – 32x (digital)
  • Field of view (HxV), degrees / m@100m - 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
  • Detection range - 1800m (thermal detection)

Sensor

  • Type Uncooled (thermal) | Full-color CMOS (digital)
  • Resolution - 640x480 (thermal) | 3840x2160 (digital)
  • Pixel pitch - 17 (thermal) µm
  • NETD - <25mK
  • Frame rate - 50Hz

Optics

  • Objective lens - F50/1.0 (thermal) | F35/4.34 (digital)
  • Magnification - 2x – 16x (thermal) | 4x – 32x (digital)
  • Field of view (HxV), degrees / m @ 100 m - 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
  • Eye relief - 50mm

Display

  • Type - AMOLED HD
  • Resolution - 1024x768

Range Performance

  • Detection range - 1800m (thermal detection)

Reticle

  • Click value, H/V, mm at 100 m - 21.25 / 21.25 (thermal channel) | 10.33 / 10.33 (digital channel)
  • Click range, H/V, mm at 100 m - 4250 / 4250 (thermal channel) | 2066 / 2066 (digital channel)
  • Number of preloaded reticles - 10

Video Recorder

  • Video / photo resolution - 1024x768
  • Video / photo format - .mp4 / .jpg
  • Built-in memory - 16 GB

Wi-Fi

  • Wireless Protocol - Wi-Fi
  • Wireless Standard - IEEE 802.11 b/g/n/ac (WPA)
  • Frequency -  2.4 / 5 GHz

Environmental Characteristics
  • Degree of protection - IP code (IEC60529) IPX7
  • Operating temperature range - -25 - +50 °С

Connections and Compatibilities

  • Max. recoil power on rifled weapon (Eo) - 6000 Joules
  • Shock resistance on the smooth-bore rifles - 12 caliber
  • Compatible mounts - Standard 30 mm rings
  • Supported Application - Stream Vision 2

Power Supply

  • Output voltage - 3.0v – 4.2v
  • Battery type - Li-Ion Battery Pack АPS2 (external) + Li-Ion Battery Pack APS5 (internal)
  • Capacity (mAh) - 2000 (external) + 4900 (internal)
  • Operating time on battery pack (at t=22°C) - 6 hours
  • External power supply - 5v, 9v (USB Type-C Power Delivery)

Weight & Size

  • Body material - Aluminum alloy
  • Dimensions (mm) - 420x78x83.5
  • Weight (kg) - 0.96 (batteries included)
