FEATURES

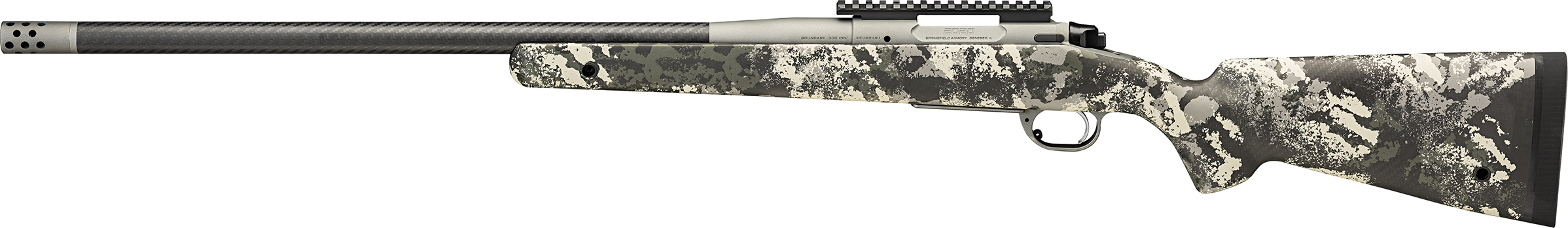

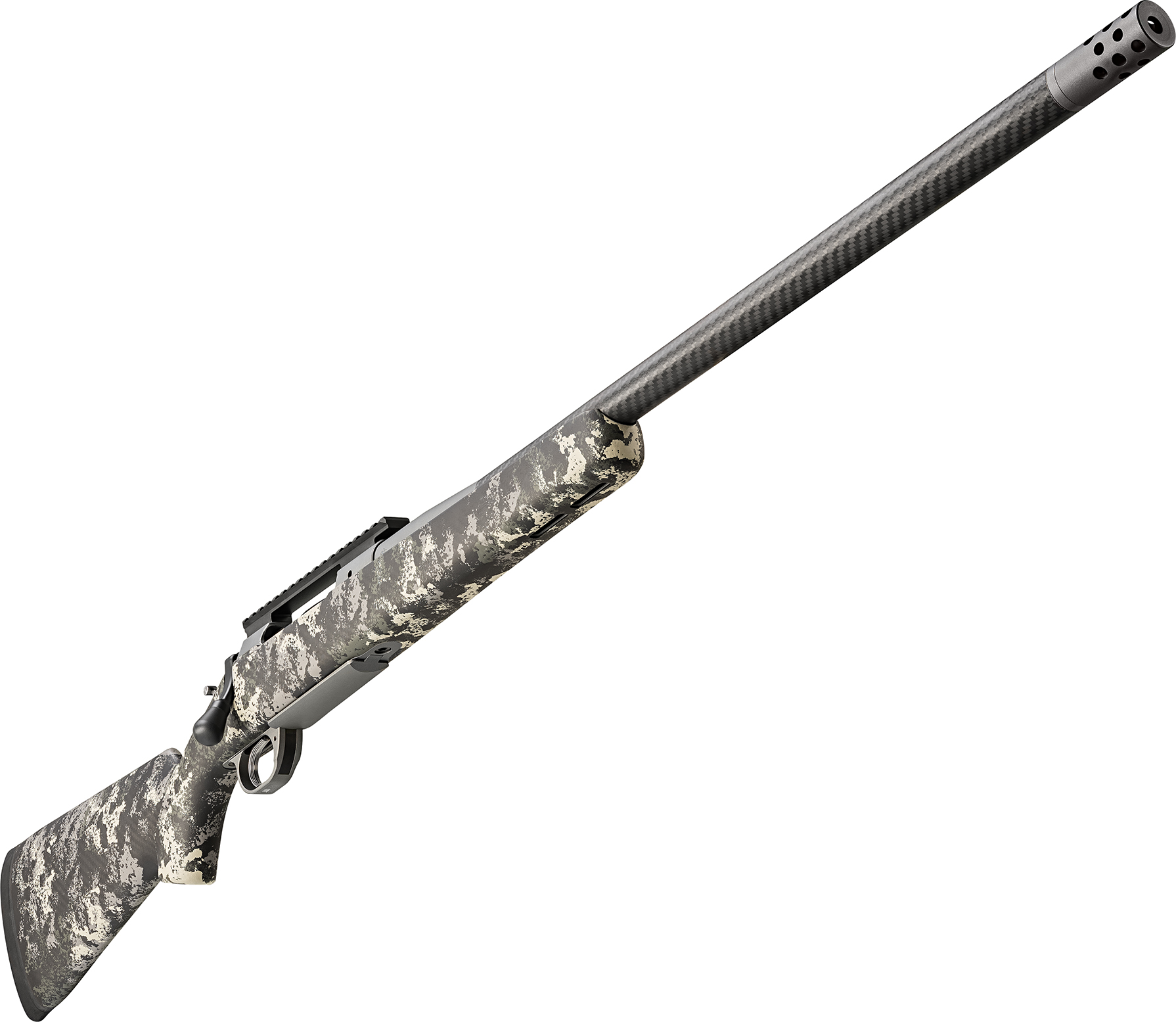

The Model 2020 Boundary family of bolt action rifles is expertly crafted for unrivalled precision and quality. With a refined carbon fibre stock and a robust hinged floor plate design, the Boundary offers the sleek lines of a classic hunting rifle with premium, modern features. Built on the custom-grade Model 2020 action, the Boundary is available in long and short action configurations and backed by our .75 MOA guarantee.
MODEL 2020 ACTION
The heart of the Boundary is the Model 2020 action, precision manufactured from premium materials. It features dual locking lugs on a fluted bolt that runs smoothly down EDM raceways for perfect, repeatable engagement. In addition, an optimized extraction cam provides robust, reliable operation in any condition.
- Pic Rail w/Recoil Pins Rem 700 Pattern
- 90 Bolt Handle
- Removable Bolt Knob
- Low Profile Bolt Stop
- Fluted Bolt Action Machined After Heat Treatment
CARBON FIBER STOCK
The barreled action on the Model 2020 Boundary is precisely fitted to the 100% carbon fibre AG Sportsman stock with hand-painted Rogue camouflage. It boasts a 13.5-inch length of pull, along with two QD cups and a 1-inch Pachmayr® Decelerator Pad for enhanced shooting comfort.
TRIGGERTECH TRIGGER
The trigger stands as the pivotal link between rifle and shooter. The Boundary’s TriggerTech Field trigger boasts a low-profile, non-snag safety and employs Frictionless Release Technology™ for a smooth pull. It’s adjustable from 2.5 – 5 pounds with a patented free-floating roller, ensuring a clean, consistent action.
- QD Cups - The stock features front and rear QD cups for sling attachment.
- Rogue Camo - The AG Composites carbon fibre stock is dressed in the Rogue camo pattern.
- Pachmayr® Decelerator Recoil Pad - Made from a soft rubber blend, the Pachmayr Decelerator provides maximum recoil reduction and shooting comfort.
- Internal Magazine - The lightweight aluminium hinged floor plate is attached to a patent-pending one-piece bottom metal that conceals an internal magazine.
- Picatinny Rail - A detachable Remington 700 pattern pic rail is mounted to the action and houses two recoil pins.
- SA Radial Brake - The removable SA Radial Brake on the Boundary effectively reduces recoil by directing gasses in an outward direction. A thread protector is included.
LOCK TIME
Lock time, the interval from trigger break to primer strike, is crucial for precision. The Model 2020 boasts a lightning-fast 1.9 milliseconds primer strike, outpacing competitors by up to 45%. Swift lock time minimizes deviation from your aim, crucial during moments of adrenaline when accuracy is paramount.
ACCURACY GUARANTEE
The Model 2020 Boundary is designed to consistently deliver the accuracy expected from a custom-grade rifle. Accordingly, Springfield Armory stands behind the rifle with a rock-solid .75 MOA accuracy guarantee — for a three-shot group at 100 yards with quality match-grade factory ammunition, in the hands of a skilled shooter.
TWO BARREL OPTIONS
The Boundary is available with either a carbon fibre or traditional fluted stainless steel free-floated barrel. The barrel of the Model 2020 Boundary is jacketed in a roll-wrapped carbon fiber sleeve and loaded under tension. This means 95 percent of the carbon fibre sleeve doesn’t contact the barrel, providing cooling air gaps and promoting consistent point of impact during shot strings. In addition, fluting under the sleeve reduces weight and increases surface cooling area.
SPECIFICATIONS
- Caliber:
- .300 PRC
- .300 WM
- .308 Win
- 6.5 CM
- 6.5 PRC
- 7mm PRC
- 7mm Rem
- Colour: Rogue Camo
- Barrel Material:
- Stainless Steel: Fluted 416, Tactical Grey Cerakote H-227
- Carbon Fibre: Tactical Grey Cerakote H-227
- Barrel Length:
- .300 PRC: 24 in
- .300 WM: 24 in
- .308 Win: 20 in
- 6.5 CM: 22 in
- 6.5 PRC: 24 in
- 7mm PRC: 24 in
- 7mm Rem: 24 in
- Twist Rate:
- .300 PRC: 1:8.5
- .300 WM: 1:10
- .308 Win: 1:10
- 6.5 CM: 1:8
- 6.5 PRC: 1:8
- 7mm PRC: 1:8
- 7mm Rem: 1:8
- Receiver: Model 2020 Stainless Steel, Tactical Grey Cerakote H-227
- Optic Mounting: Picatinny Mount, Rem 700 SA Pattern, 6-48 Screws
- Bolt: Fluted 4140 Tool Steel, Nitride
- Stock: AG Sportsman, Carbon Fibre, M-Lok, QD Cups
- Trigger: TriggerTech Adjustable, 2.5 - 5 lbs
- Muzzle Device: SA Radial Brake, Tactical Grey Cerakote H-227
- Magazine:
- .300 PRC: 3-Round Internal
- .300 WM: 3-Round Internal
- .308 Win: 4-Round Internal
- 6.5 CM: 4-Round Internal
- 6.5 PRC: 3-Round Internal
- 7mm PRC: 3-Round Internal
- 7mm Rem: 3-Round Internal
- Weight:
- .300 PRC:
- Stainless Steel: 3.24 kg / 7 lbs 2 oz
- Carbon Fibre: 3.18 kg / 7 lbs
- .300 WM:
- Stainless Steel: 3.24 kg / 7 lbs 2 oz
- Carbon Fibre: 3.18 kg / 7 lbs
- .308 Win:
- Stainless Steel: 3.01 kg / 6 lbs 13 oz
- Carbon Fibre: 3 kg / 6 lbs 10 oz
- 6.5 CM:
- Stainless Steel: 3.21 kg / 7 lbs 1 oz
- Carbon Fibre: 3.15 kg / 6 lbs 15 oz
- 6.5 PRC:
- Stainless Steel: 3.24 kg / 7 lbs 2 oz
- Carbon Fibre: 3.18 kg / 7 lbs
- 7mm PRC:
- Stainless Steel: 3.24 kg / 7 lbs 2 oz
- Carbon Fibre: 3.18 kg / 7 lbs
- 7mm Rem:
- Stainless Steel: 3.24 kg / 7 lbs 2 oz
- Carbon Fibre: 3.24 kg / 7 lbs
- Length:
- .300 PRC: 46 in / 117 cm
- .300 WM: 46 in / 117 cm
- .308 Win: 41 in / 105 cm
- 6.5 CM: 43 in / 110 cm
- 6.5 PRC: 45 in / 115 cm
- 7mm PRC: 46 in / 117 cm
- 7mm Rem: 46 in / 117 cm
- SKU:
- .300 PRC:
- Stainless Steel: BAB924300PRCY
- Carbon Fibre: BAB924300PRCCFY
- .300 WM:
- Stainless Steel: BAB924300WMY
- Carbon Fibre: BAB924300WMCFY
- .308 Win:
- Stainless Steel: BAB920308Y
- Carbon Fibre: BAB920308CFY
- 6.5 CM:
- Stainless Steel: BAB92265CMY
- Carbon Fibre: BAB92265CMCFY
- 6.5 PRC:
- Stainless Steel: BAB92465PRCY
- Carbon Fibre: BAB92465PRCCFY
- 7mm PRC:
- Stainless Steel: BAB9247PRCY
- Carbon Fibre: BAB9247PRCCFY
- 7mm Rem:
- Stainless Steel: BAB9247Y
- Carbon Fibre: BAB9247CFY
