FEATURES

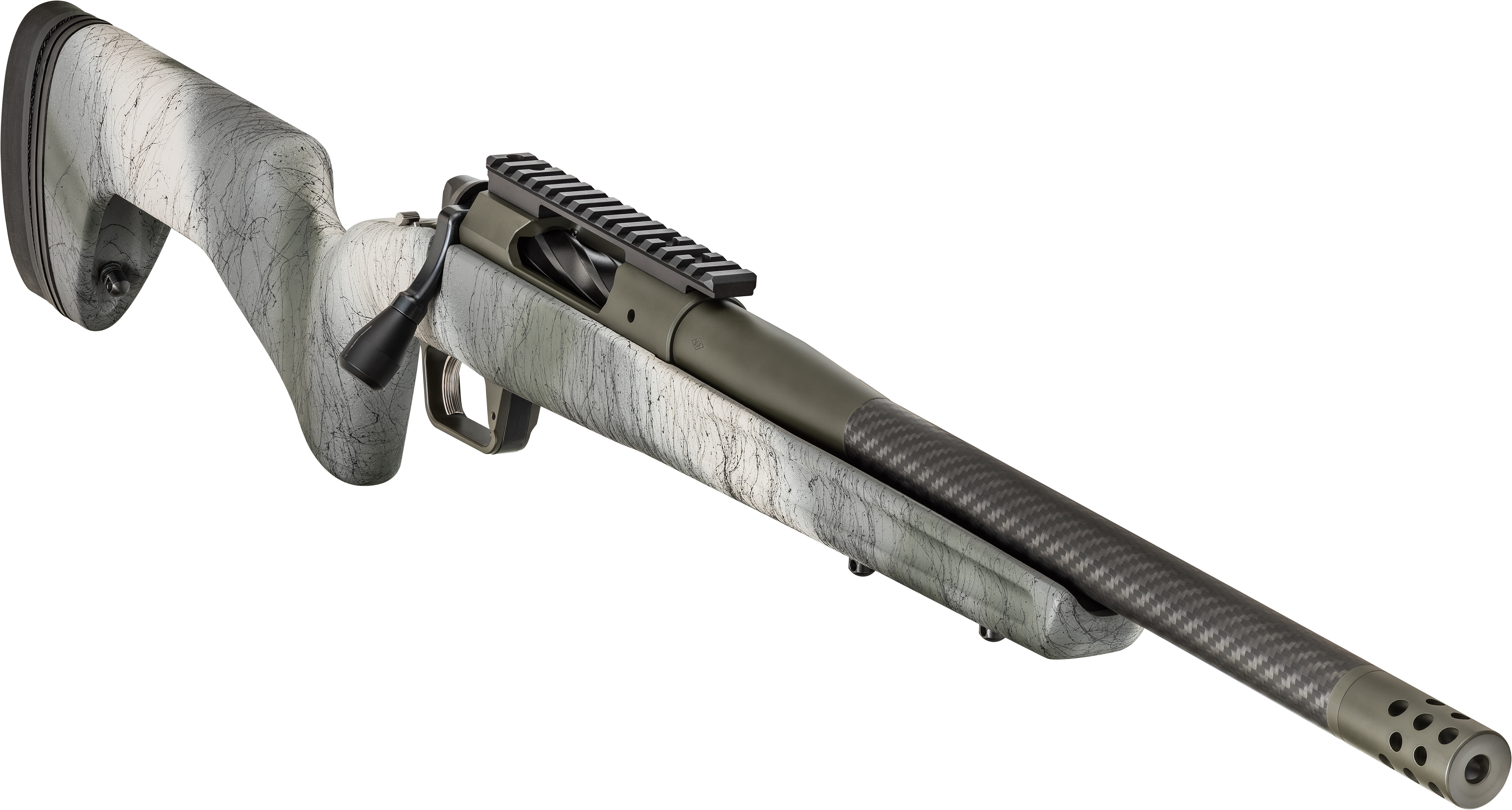

Leave no territory unexplored with the Model 2020 Redline from Springfield Armory®. Designed to deliver a lightweight, custom-grade hunting rifle the Model 2020 Redline is available in .308 and 6.5 Creedmoor. Featuring a minimalist Grayboe Trekker stock and outfitted with a 16” or 20” carbon fibre barrel, the Redline is suppressor ready and carries a .75 MOA guarantee.
Embracing attributes of the classic scout rifle, the Model 2020 Redline takes the concept into the 21st century with the use of modern materials and cutting-edge design. The result is a lightweight and compact rifle ready for hunts where every ounce counts.
MODEL 2020 ACTION
The heart of the Redline is the Model 2020 action, precision manufactured from premium materials. It features dual locking lugs on a fluted bolt that runs smoothly down EDM raceways for perfect, repeatable engagement. In addition, an optimized extraction cam provides robust, reliable operation in any condition.
- Pic Rail w/Recoil Pins Rem 700 Pattern
- 90 Bolt Handle
- Removable Bolt Knob
- Low Profile Bolt Stop
- Fluted Bolt Action Machined After Heat Treatment

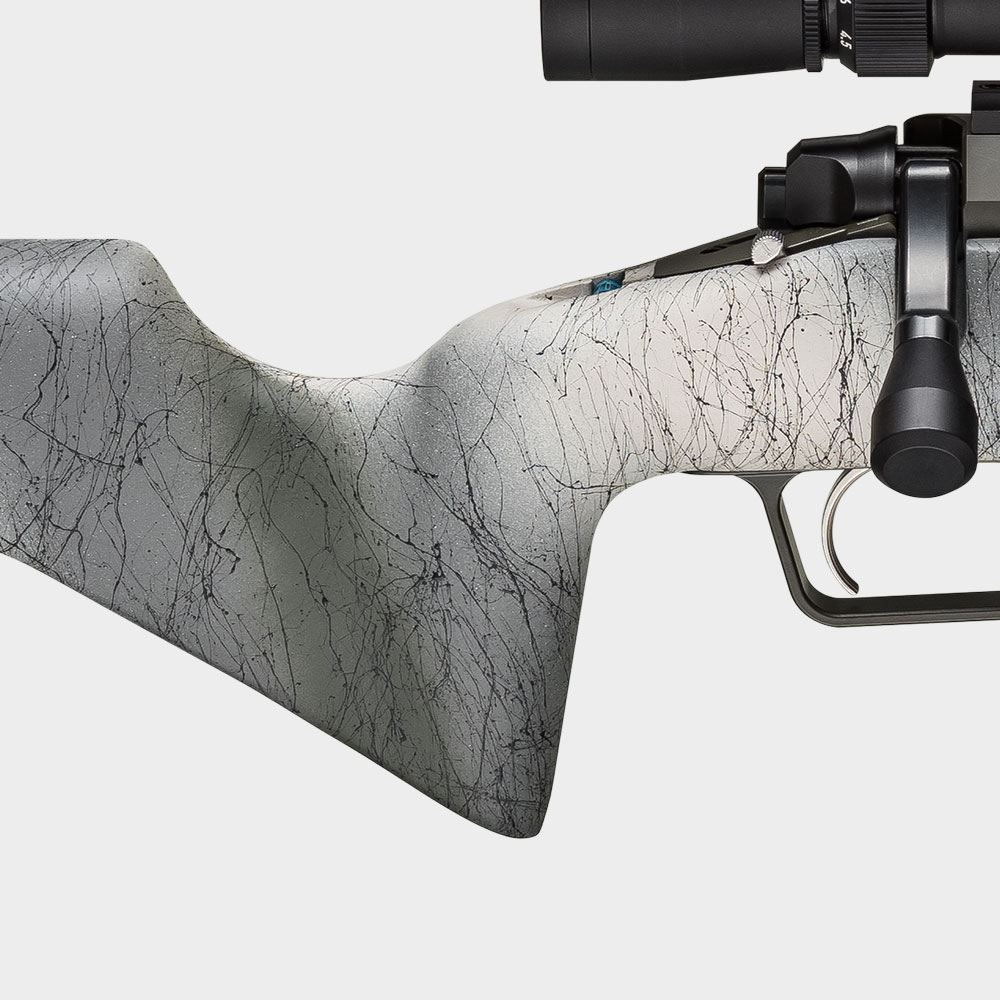

GRAYBOE TREKKER
Combining light weight with unyielding performance, the 28 ounce Grayboe Trekker stock features an adjustable length of pull system — featuring .25” adjustment increments, with a range of 13.25” to 14.25” and adjustable up to 16” with additional spacers.
CARBON FIBER BARREL
The free-floated barrel of the Model 2020 Redline is jacketed in a roll-wrapped carbon fibre sleeve and loaded under tension. This means 95 percent of the carbon fibre sleeve doesn’t contact the barrel, providing cooling air gaps and promoting consistent point of impact during shot strings. In addition, fluting under the sleeve reduces weight and increases surface cooling area.
- 3 Stud Mounts - Three stud mounts, two in front and one in back, allow for easy attachment of slings and bipods.
- SA Radial Brake - The removable SA Radial Brake on the Model 2020 Redline effectively reduces recoil by directing gasses in an outward direction. A thread protector is included.
- Adjustable Length of Pull - Adjustable in .25-inch increments, removable inserts beneath the recoil pad allow for a length of pull of 13.25-14.25-inches and up to 16-inches with additional spacers.
- AICS Pattern Magazine - With exceptional design, broad acceptance and utter reliability, this magazine ensures you will have your shot - every time.
- Integrated Bubble Level - The integral bubble level/thumb rest at the rear of the action ensures maximum down range performance without breaking cheek weld or losing optic line of sight.
- Vertical Grip - The vertical grip on the Grayboe Trekker stock allows for a more comfortable shooting position and greater trigger control.
ACCURACY GUARANTEE
Due to its combination of cutting-edge design with state-of-the-art materials, the Model 2020 Redline is designed to consistently deliver the accuracy expected from a custom-grade rifle. Accordingly, Springfield Armory stands behind the rifle with a rock-solid .75 MOA accuracy guarantee — for a three-shot group at 100 yards with quality match-grade factory ammunition, in the hands of a skilled shooter.
TRIGGERTECH TRIGGER
The trigger is the most important interface between the rifle and shooter. The Redline’s trigger from TriggerTech features a low-profile, non-snag safety and employs the company’s Frictionless Release Technology™. It’s adjustable from 2.5 – 5 pounds with a patented, free-floating roller for a crisp, clean and repeatable pull.
SUPPRESSOR READY
Under the rifle’s muzzle brake topping off both the 16” and 20” barrels is 5/8×24 pattern threading, ensuring that you can easily equip the Model 2020 Redline with a wide range of suppressors. The result is a lightweight and compact rifle ready for hunts where every ounce counts.
SPECIFICATIONS
- Caliber:
- .308 Win (7.62x51mm NATO)
- 6.5 Creedmoor
- Colour: Olive w/ Black Webbing
- Barrel:
- 16 in Carbon Fibre
- 20 in Carbon Fibre
- Muzzle Thread:
- .308 Win: 5/8x24, 1:10
- 6.5 CM: 5/8x24, 1:8
- Receiver: Model 2020 Stainless Steel, Mil-Spec Green Cerakote H-264
- Optic Mounting: Picatinny Mount, Rem 700 SA Pattern, 6-48 Screws
- Bolt: Fluted 4140 Tool Steel, Nitride
- Stock: Grayboe Trekker, Olive w/ Black Webbing
- Trigger: TriggerTech Adjustable, 2.5 - 5 lbs
- Muzzle Device: SA Radial Brake, Mil-Spec Green Cerakote H-264
- Magazine: 3 Round, AICS Short Action
- Weight:
- 16 in: 2.73 kg / 6 lbs
- 20 in: 2.85 kg / 6 lbs 4 oz
- Length:
- 16 in: 92.71 - 95.89 cm / 36.5 - 37.75 in
- 20 in: 102.87 - 106.05 cm / 40.5 - 41.75 in
- SKU:
- .308 Win 16 in: BAT916308CFGC
- .308 Win 20 in: BAT920308CFGC
- 6.5 CM 16 in: BAT91665CMCFGC
- 6.5 CM 20 in: BAT92065CMCFGC
